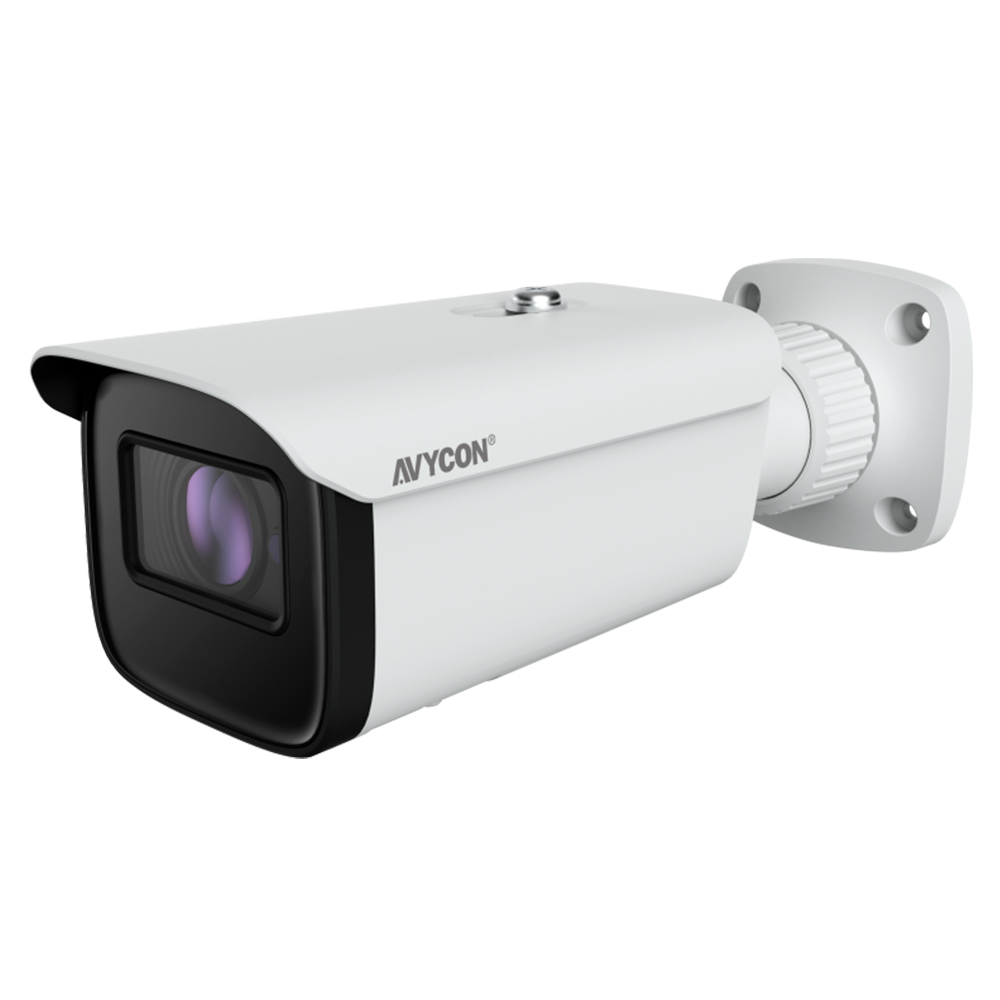

4MP SMART DEFENDER BULLET IP CAMERA
The AVYCON AVC-BNN41AVT camera is a 4MP H.265 Bullet Network Camera. This 4MP IP camera supports True Day and Night mode, PoE, up to 164ft. of Smart IR Illumination, and also incorporates an InfiniteStar sensor which allows viewing of video in the lowest of light environments, even in color. This camera includes a Motorized 30mm-50mm Lens with Auto focus capabilities that can be controlled through a NVR. The AVC-BNN41AVT features Output, Audio Input, a microSD slot (256GB max capacity), and is ONVIF compliant. Also standard with this series is Digital NR, ROI, HLC, True WDR, and BLC capabilities along with IP67 outdoor rating. Optional accessories for this camera include a Junction Box Mount. Includes a MicroSD memory card slot for standalone recording applications.
· 4MP ( 2592 × 1520 ) @ 30fps
· Max. Resolution: 2592 × 1520
· H.265+/H.265/H.264+/H.264/MJPEG Coding
· ICR Auto Switch, True Day / Night vision
· 98ft to 264ft (30-50m) IR Night View Distance
· 3D DNR, True WDR, HLC, BLC and ROI Encoding
· Support Image Distortion Correction
· 1CH Audio Input
· Built-in micro SD card slot with video and still image capture function (up to 256GB)
· DC12V/PoE Power Supply
· IP 67 Ingress Protection
· Support Triple Streams
· Support Remote Monitoring by Smart Phones & Tablet PCs with iOS and Android OS
· Intelligent Analytics
· UL-listed
| CAMERA | ||||||||||||||||
| Image Sensor | 1/3” Progressive Scan CMOS | |||||||||||||||
| Image Size | 2592 x 1520 | |||||||||||||||
| Shutter Speed | 1/2s to 1/100,000s | |||||||||||||||
| Iris Type | DC Iris | |||||||||||||||
| Min. Illumination | 0.005 lux@F1.6,AGC ON;0 lux with IR | |||||||||||||||
| IR Distance | Up to 164ft | |||||||||||||||
| >Lens | Motorized 2.8 - 12 mm @ F1.3 Horizontal FoV: 100.0° ~ 28.9° Vertical FoV: 54.5° ~ 16.7° Diagonal FoV: 104.8° ~ 33.1° | |||||||||||||||
| Focus | Motorized | |||||||||||||||
| Lens Mount | Ø14 | |||||||||||||||
| ICR | ||||||||||||||||
| Wide Dynamic Range | 120dB | |||||||||||||||
| Digital NR | 3D DNR | |||||||||||||||
| Backlight Compensation (BLC) | Yes | |||||||||||||||
| Highlight Compensation (HLC) | Yes | |||||||||||||||
| Defog | Yes | |||||||||||||||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° | |||||||||||||||
| VIDEO IMAGE | ||||||||||||||||
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub/third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |||||||||||||||
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
|||||||||||||||
| Resolution | 4MP (2592×1520), 2K(2560×1440), 3MP(2304×1296), 1080P(1920×1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240, VGA(640 × 480) | |||||||||||||||
| Main Stream | 60Hz: 4MP/2K/3MP/1080P/720P (1~30fps); 50Hz: 4MP/2K/3MP/1080P/720P (1~25fps); HFR mode: 1080P/720P (60Hz: 1~60fps / 50Hz: 1~50fps) | |||||||||||||||
| Sub Stream | 760Hz: 720P/D1/CIF/VGA (1~30fps);50Hz: 720P/D1/CIF/VGA (1~25fps) | |||||||||||||||
| Third Stream | 60Hz: D1/CIF/480x240 (1~30fps); 50Hz: D1/CIF/480x240 (1~25fps) | |||||||||||||||
| Video Bit Rate | 64 Kbps ~ 8 Mbps (CBR / VBR Adjustable) | |||||||||||||||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |||||||||||||||
| ROI | Each ROI to be configured separately | |||||||||||||||
| NETWORK / INTERFACE | ||||||||||||||||
| Network | 1 x RJ45 10M / 100M Self-Adaptive Ethernet port | |||||||||||||||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPS, QoS | |||||||||||||||
| Interface Protocol | ONVIF (Profile S, G, T, M) | |||||||||||||||
| Web Browse | IE 11 (Plug-in required) / Google Chrome 89.0+ / Edge 89.0+ / Firefox 87.0+ / Safari 14.0+ | |||||||||||||||
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission | |||||||||||||||
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP |
|||||||||||||||
| Storage | Micro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function | |||||||||||||||
| Video Output | No | |||||||||||||||
| Audio | 1CH audio input | |||||||||||||||
| Audio Compression | G711A / U | |||||||||||||||
| Alarm | N/A | |||||||||||||||
| Hardware Reset | Yes | |||||||||||||||
| DORI DISTANCE | ||||||||||||||||
|
||||||||||||||||
| FUNCTIONS | ||||||||||||||||
| Remote Monitoring | Web Browser Interface, Mobile App, AVYCON CVMS 2.0 |
|||||||||||||||
| Smart Alarm | Motion detection, SD card error, SD card full, IP address conflict, cable disconnection | |||||||||||||||
| Smart Analytics | Line crossing, region intrusion/entrance/exiting, loitering detection, illegal parking detection, abandoned/missing object detection, Target counting by line/intrusion area/heat map, exception detection, face detection and face capture | |||||||||||||||
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 5 motor vehicle features and 1 non-motor vehicle feature |
|||||||||||||||
| General Function | Watermark, IP address filtering, video mask, heartbeat, illigal login lock, corridor pattern |
|||||||||||||||
| GENERAL | ||||||||||||||||
| Power Supply | DC12V / PoE (IEEE 802.3af) | |||||||||||||||
| Power Consumption | <9.5W | |||||||||||||||
| Operating Condition | -22°F ~ 140°F (-30°C ~ 60°C) Humidity: less than 95% (non-condensing) | |||||||||||||||
| Storage Environment | -22°F ~ 149°F (-30°C ~ 65°C) Humidity: less than 95% (non-condensing) | |||||||||||||||
| Dimension | 8.57in (217.8mm) × 3.17in (80.5 mm)× 3.16in (80.3mm) | |||||||||||||||
| Weight (lb) | Approx. 1.45 lbs | |||||||||||||||
| Ingress Protection) | IP 67 | |||||||||||||||
| Certificate | CE, FCC, UL | |||||||||||||||
| Installation | Ceiling mounting; Wall mounting | |||||||||||||||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU), directive 94/62/EC and REACH (EC1907/2006) | |||||||||||||||
