Plug & Play Series

AVC-BNN81FT/2.8 요약정보 및 구매

8MP H.265 HD AI BULLET NETWORK CAMERA

상품 선택옵션 0 개, 추가옵션 0 개

· 8MP ( 3840 x 2160 )
· Max Resolution: 3840 x 2160
· Supports Smart H.265/H.265 Encoding
· True Day & Night ICR
· Up to 164 ft. IR Illumination
· Fixed 2.8mm Lens
· 3D DNR, True WDR, HLC, BLC and ROI Encoding
· Supports Triple Streams
· Supports 1 CH. Audio Input
· Optional P2P function
· Built-in micro SD card slot with video and still image
  capture function (up to 256GB)
· Supports Remote Access with Windows, macOS, iOS and Android
· IP67 Ingress Protection
· Operating Temperature: -22°F - 140°F(-30°- 60° C)
· DC12V / PoE (802.3af)
· NDAA Compliant

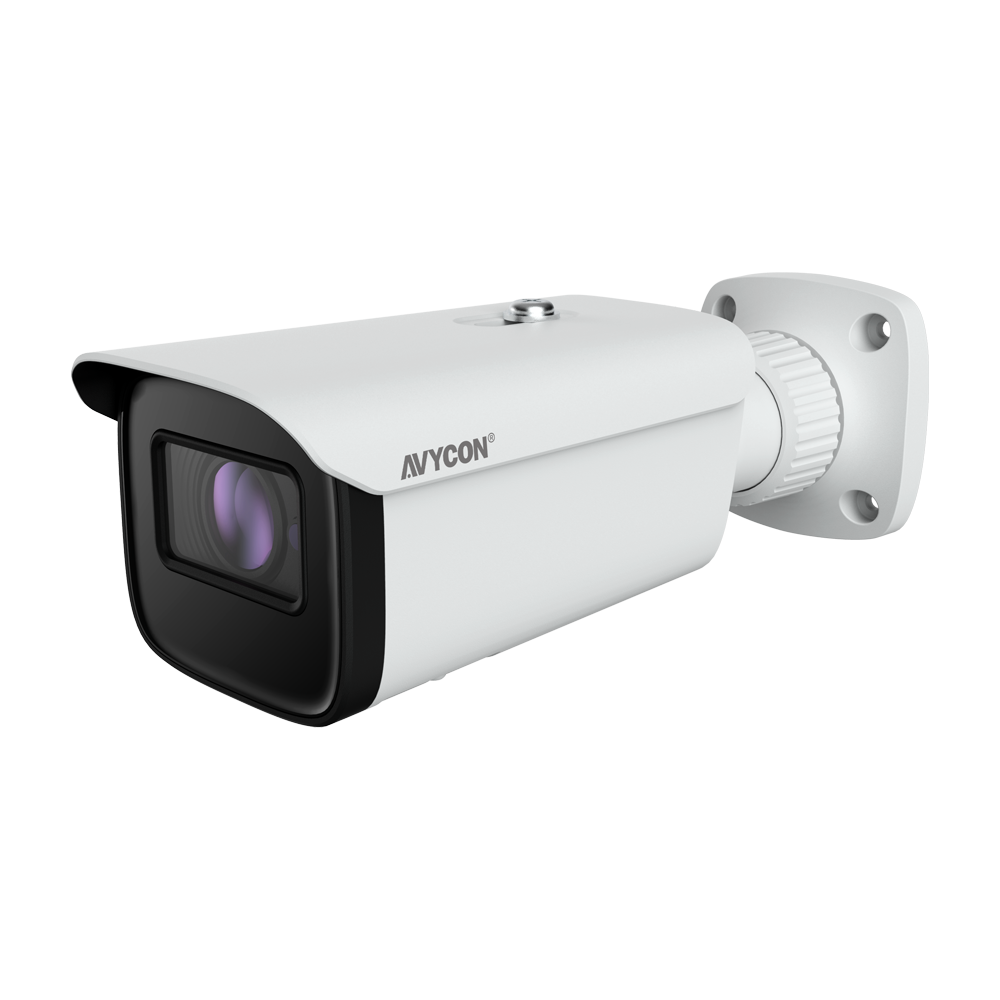

8MP H.265 HD AI BULLET NETWORK CAMERA


The AVYCON AVC-BNN81FT/2.8 camera is an 8MP H.265 HD AI Bullet Network Camera with Smart Features. This 8MP IP camera supports True Day and Night mode, PoE, and up to 164 ft. of IR night view distance. This camera includes a Fixed 2.8mm Lens with Auto-focus capabilities that can be controlled through a DVR. The AVC- BNN81FT/2.8 features a Audio Input, a built-in microSD slot (256GB max capacity), and is ONVIF compliant. Also standard with this series is 3D Digital NR, ROI, HLC, True WDR, and BLC capabilities along with IP67 outdoor rating. Optional accessories for this camera include a Junction Box Mount, a Pole Mount Bracket, and a Corner Mount Bracket.


· 8MP ( 3840 x 2160 )

· Max. Resolution: 3840 x 2160

· Supports Smart H.265/H.265 Encoding

· True Day & Night ICR

· Up to 164 ft. IR Illumination

· Fixed 2.8mm Lens

· 3D DNR, True WDR, HLC, BLC and ROI Encoding

· Supports Triple Streams

· Supports 1 CH. Audio Input

· Optional P2P function

· Built-in micro SD card slot with video and still image capture function (up to 256GB)

· Supports Remote Access with Windows, macOS, iOS and Android

· IP67 Ingress Protection

· Operating Temperature: -22°F - 140°F(-30°- 60° C)

· DC12V / PoE (802.3af)

· NDAA Compliant


Features - WDR.pngFeatures - H265.pngFeatures - IP67.pngFeatures - Intelligent Video Analytics.pngFeatures - Advanced Edge Recording.pngFeatures - Smart IR.pngFeatures - Defogging.png
CAMERA
Image Sensor 1 / 2.8" Progressive Scan CMOS
Image Size 3840 x 2160
Shutter Speed 1/3s to 1/100,000s
Iris Type Fixed Iris
Min. Illumination Color: 0.02 lux @ F1.6 (AGC ON); BW: 0 lux with IR
IR Distance Up to 164ft
Len Fixed 2.8 @ F1.6 Horizontal FoV: 104° Vertical FoV: 55° Diagonal FoV: 125°
Focus Fixed
Lens Mount M12
Day & Night ICR
Wide Dynamic Range 120dB
Digital NR 3D DNR
Backlight Compensation (BLC) Yes
Highlight Compensation (HLC) Yes
Defog Yes
S/N Ratio ≥50dB
EIS Yes
Angle Adjustment Pan: 0°~360° ; Tilt: 0°~90° ; Rotation:0°~360°
VIDEO IMAGE
Video Compression Main stream: H.265+ / H.265 / H.264+ / H.264 Sub/third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.264 Compression Standard Baseline Profile / Main Profile / High Profile
Resolution 8MP ( 3840 × 2160 ), 6MP ( 3072 × 2048 ), 5MP ( 2592 × 1944), 4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280× 720 ), D1, CIF, 480 × 240, VGA ( 640 × 480 )
Main Stream 60Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~30fps);50Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~25fps);HFR mode: 1080P/720P (60Hz: 1~60fps / 50Hz: 1~50fps)
Sub Stream 60Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~30fps);50Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~25fps);HFR mode: 1080P/720P (60Hz: 1~60fps / 50Hz: 1~50fps)
Third Stream 60Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~30fps);50Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~25fps);HFR mode: 1080P/720P (60Hz: 1~60fps / 50Hz: 1~50fps)
Video Bit Rate 64 Kbps ~ 12 Mbps (CBR / VBR Adjustable)
Image Settings ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser
ROI Each ROI to be configured separately
NETWORK / INTERFACE
Network 1 x RJ45 10M / 100M Self-Adaptive Ethernet port
Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPs, QoS
Interface Protocol ONVIF (Profile S, G, T, M)
Web Browser IE 11 (Plug-in required) / Google Chrome 89.0+ / Edge 89.0+ / Firefox 87.0+ / Safari 14.0+
Online Connection Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Security Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP
Storage Micro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function
Video Output No
Audio 1CH audio input
Audio Compression G711A / U
Alarm No
Hardware Reset Yes
DORI DISTANCE
Lens Detect Observe Recognize Identify
2.8mm 272ft (83m) 108ft (33m) 56ft (17m) 26ft (8m)
FUNCTIONS
Remote Monitoring Web Browser Interface, Mobile App, AVYCON CVMS 2.0
Smart Alarm Motion detection, SD card error, SD card full, IP address conflict, cable disconnection
Smart Analytics Line crossing, region intrusion/entrance/exiting, loitering detection, illegal parking detection, abandoned/missing object detection, Target counting by line/intrusion area/heat map, exception detection, face detection and face capture
Video Metadata Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 5 motor vehicle features and 1 non-motor vehicle feature
General Function Watermark, video mask, heartbeat, image distortion correction, corridor pattern
GENERAL
Power Supply DC12V / PoE (IEEE802.3af)
Power Consumption <9W
Operating Environment -22°F ~ 140°F (-30°C ~ 60°C) Humidity: less than 95% (non-condensing)
Storage Environment -22°F ~ 149°F (-30°C ~ 65°C) Humidity: less than 95% (non-condensing)
Dimensions (in) 8.57 x 3.17 x 3.16
Weight (lb) Approx. 1.49 lbs
Ingress Protection IP 67
Certificate CE, FCC
Installation Ceiling mounting; Wall mounting
Environmental Protection Complies with Directive EU RoHS, WEEE(2012/19/EU), directive 94/62/EC and REACH (EC1907/2006)

8MP H.265 HD AI BULLET NETWORK CAMERA

Technology - Anomaly Detection.pngTechnology - Color Cast Detection.pngTechnology - Intrusion.pngTechnology - Line Crossing.pngTechnology - People Counting.pngTechnology - Region Entrance and Exit.pngTechnology - Tamper.pngTechnology - Video Blur Detection.pngTechnology - Face Detection.pngTechnology - People and Vehicle Detection.png
