• 8MP (3840x2160) H.265+/H.264+/MJPEG
• Max. resolution: 3840x2160
• Full Color / Active Deterrence Camera
• 2.8-12mm Motorized Lens (F1.2)
• 3D DNR, WDR, HLC, BLC, ROI encoding
• Intelligent Analytics
• White Light LED / Strobe (Blue & Red) Light
• Built-in MIC / Speaker
• Built-in micro SD card slot, up to 256GB
• IP66 ingress protection
• DC12V/PoE power supply
• Support remote monitoring by AVYCON ONE (Mobile APP) and AVYCON CMSONE (CMS)
| CAMERA | |
| Imaging Device | 1/2.8" |
| Effective Pixels | 8MP 3840(H)×2160(V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.007lux @ F1.0(AGC ON) ; B/W 0 lux @ IR ON |
| LENS | |
| Focal Length (Zoom Ratio) | 2.8-12mm |
| Max. Aperture Ratio | F No. 1.2 |
| Angular Field of View | Horizontal:107(W)-34(T)°, Vertical:56(W)-19(T)°, Diagonal:129(W)-39(T)° |
| Min. Object Distance | 1.5m |
| Lens Type | Ø16.7 |
| OPERATIONAL | |
| IR LED | 2 |
| WarmLight | 2 |
| Red Blue Light | 2 (1Red & 1Blue) |
| IR Viewable Length | Up to 98ft (30m) |
| WarmLight Viewable Length | Up to 82ft (25m) |
| Type of complementary light | Default warm light, switchable infrared light |
| Motion Detection | Off/On (8 Level) |
| Wide Dynamic Range | WDR |
| Digital Noise Reduction | 3D DNR |
| Image Setting | Full Color Mode/Day&Night Mode/Smart IIIumination |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 256GB |
| Alarm | Yes |
| Audio | Built-in microphone & Speaker |
| Custom Voice | Yes |
| Hardware Reset | Yes |
| Analytics | Face Detection, Human &
Vehicle Detection, Intrusion Detection, Tripwire Detection, Stationary Object
Detection, Tripwire Count, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection,
Rare Sound Detection, Loitering Detection, Region Entrance Detection, Region Exiting Detection |
| NETWORK | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Resolution | Main Stream@20fps:
8MP(3840x2160), 5MP(2592x1944,3072x1728), 4MP(2592x1520), 3MP(2304x1296), 1080P(1920x1080), 960P(1280*960), 720P(1280x720) Sub Stream@20fps: 720P(1280x720),VGA(640x480),QVGA(320x240) Mobile Stream@20fps: VGA(640x480), QVGA（320x240） |
| Video Quality Adjustment | 256Kbps ~ 16Mbps |
| Bitrate control method | CBR/VBR |
| IP | IPv6 |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Security | IP address filter;complicated password;Authenticated username and password |
| Application Programming Interface | ONVIF( Profile S/G/T/M) |
| Web Viewer | IE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above |
| ENVIRONMENTAL | |
| Operating Conditions | -31~+160°F (-35～+60°C)/less than 90% RH |
| Ingress Protection | IP67 |
| ELECTRICAL | |
| Input Voltage / Current | D12V/POE(IEEE802.3af) |
| Power Consumption | DC12V ：max 6.8W； POE（48V): max 8W |
| MECHANICAL | |
| Material | Metal |
| Dimensions | Ø5.8 x 4.5in (Ø148.97 x 115.01mm) |
| Weight | TBA |

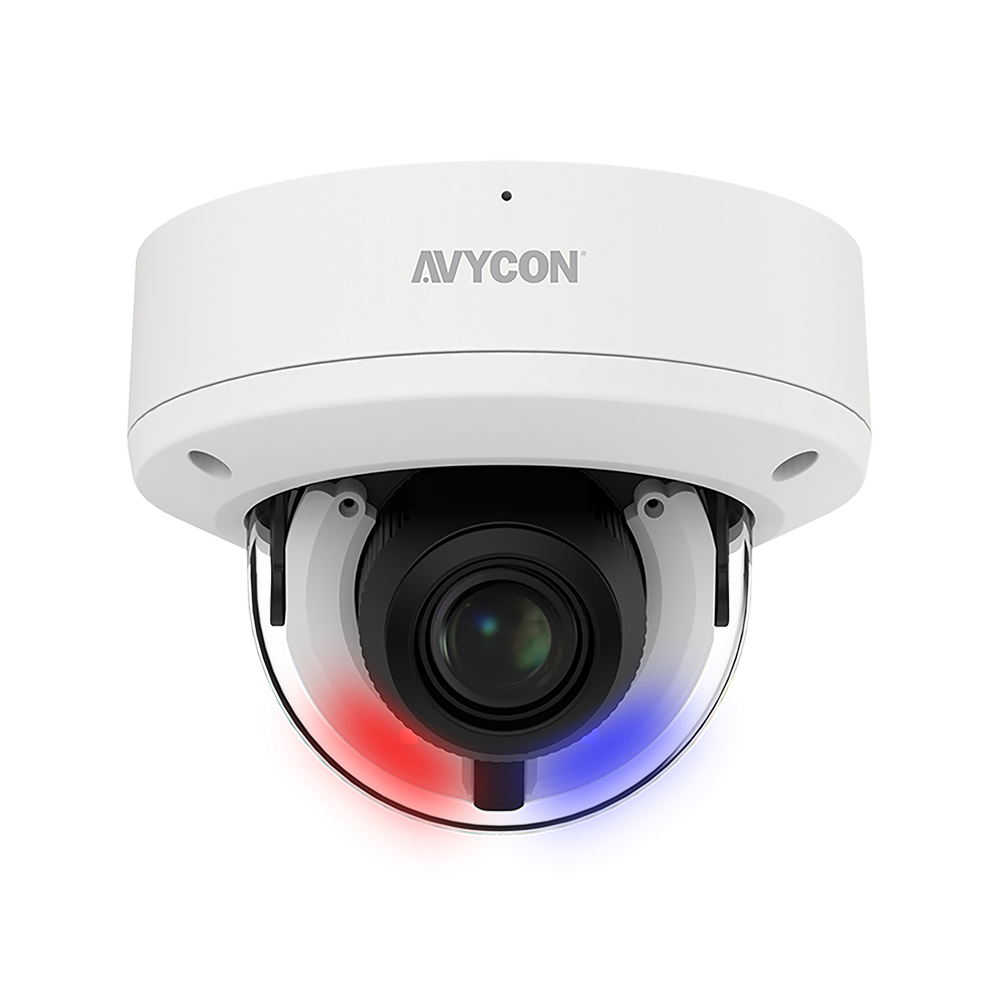

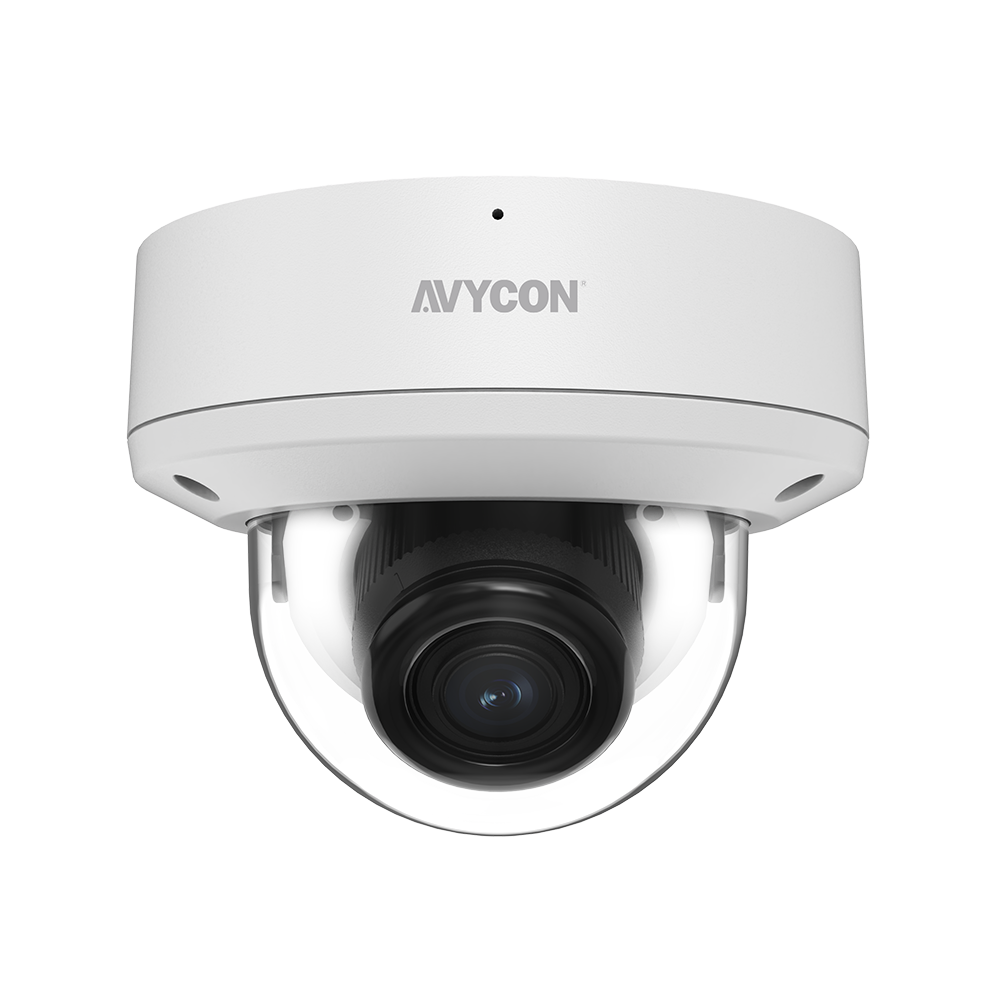

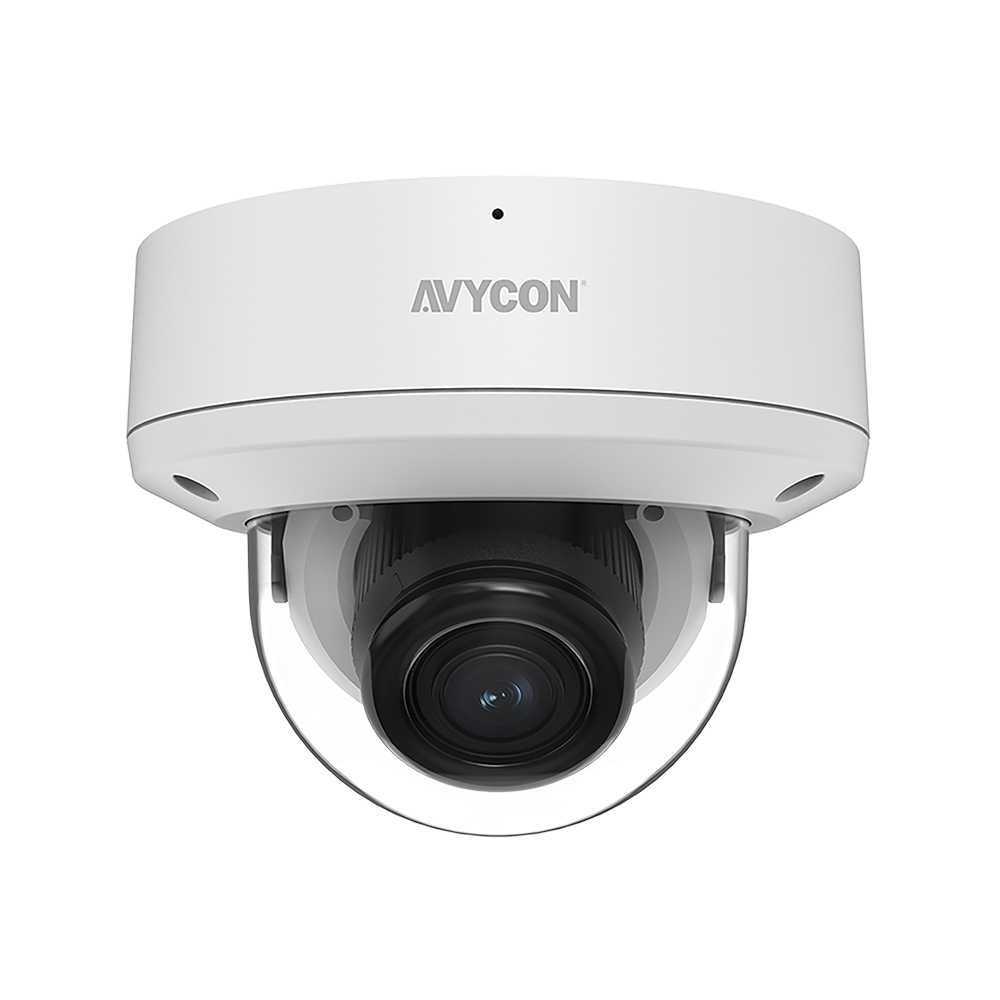

8MP H.265 MOTORIZED VANDAL DOME NETWORK CAMERA Active Deterrence 24/7 Color
