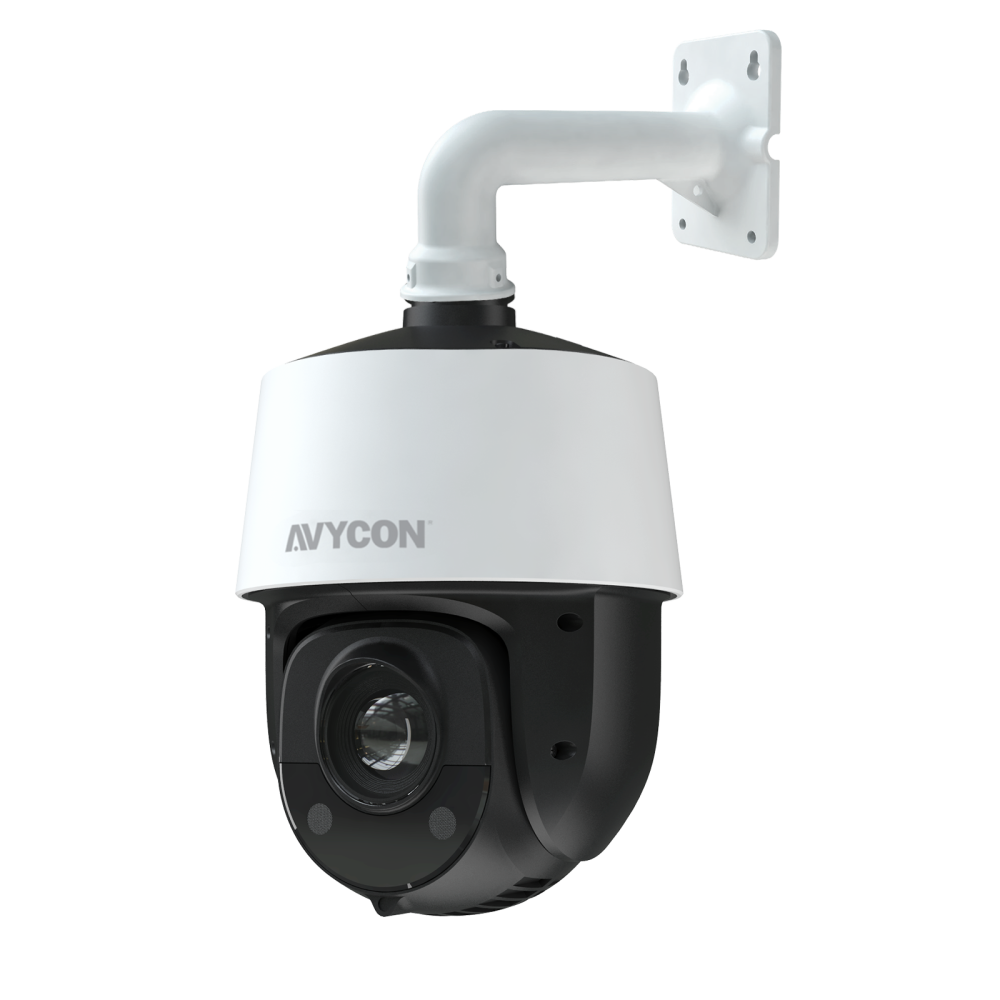

2MP NETWORK IR SPEED DOME CAMERA
The AVC-PNN21X25LW camera is a 2MP Network Camera using Infinite-Star™ technology, with an ultra-low lux sensitivity, providing crisp color images of the environment even at night. Featuring powerful optical zoom and accurate pan/tilt/zoom performance, the camera provides a wide monitoring range and great detail. In cooler/freezing weather the built-in automatic Defrost feature starts and stops at preset temperatures (Defrost settings can't be modified or scheduled in anyway). The camera delivers 2MP full high definition resolution at 25/30fps. The camera is equipped with smooth control, high quality image, and good protection, meeting compact size demands of video surveillance applications.
· 1/2.8" Progressive Scan CMOS
· Up to 1920 x 1080 Resolution
· Min. illumination: Color: 0.005 Lux@(F1.6, AGC ON) /
B/W: 0.001 Lux@(F1.6, AGC ON) / 0 Lux with IR
· 25× Optical Zoom, 16x Digital Zoom
· 120 dB WDR, 3D DNR, Smart IR
· Up to 150m IR distance
· Smart H.265/H.264 video compression
· IP66,-30°C~55°C, ADC12 + PC/GF
· PoE+ (802.3.at, class 3) and DC12V
· ONVIF, API and SDK
· NDAA Compliant
· Includes wall mount (AVM-PT-WMT-N20)
· Built-in automatic Defrost feature (starts and stops at preset temperatures)
· Built-in micro SD card slot with video and still image capture function (up to 256GB)
| CAMERA | |
| Image Sensor | 1 / 2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 lux @F1.6, AGC ON, B/W: 0.001lux @F1.65, AGC ON, 0 lux with IR |
| White Balance | Auto/Manual/Indoor/Outdoor |
| S/N Ratio | More than 50dB |
| Gain | Auto/Manual |
| Shutter Time | 1/1s - 1/100,00s |
| Day & Night | IR Cut Filter |
| Privacy Mask | No |
| Focus Mode | Auto/Manual |
| WDR | 120dB |
| LENS | |
| Focal Length | f=4.8-120mm 25x Optical Zoom |
| Zoom Speed | Approx. 3.6s (Optical Lens, Wide-TELE) |
| Field of View | Horizontal field of view: 57.6° to 2.5° (Wide-TELE) Vertical field of view: 34.4° to 1.4° (Wide-TELE) Diagonal field of view: 64.5° to 2.9° (Wide-TELE) |
| Working Distance | Wide:1.0m~INF, Tele: 1.5m~INF |
| Aperture Range | F1.65 (Wide) to F3.8 (TELE) |
| IR | |
| IR Distance | 192ft (150m) |
| Smart IR | Yes |
| PTZ | |
| Pan Range | 360° Endless |
| Pan Speed | Configurable, from 0.1°/s to 80°/s; Preset Speed: 80°/s |
| Tilt Range | From -5° to 90° |
| Tilt Speed | Configurable, from 0.5°/s to 80°/s; Preset speed: 80°/s |
| Proportional Zoom | Yes |
| Preset | 360 |
| Cruise | 8 cruises, up to 16 presets for each cruises |
| Trace | 4 traces, record time over 3 minutes for each trace |
| Power-off Memory | Support |
| Action Mode | Preset / Cruise / Trace / Auto Scan / Random Scan |
| 3D Positioning | Support |
| PTZ Position Display | Support |
| Scheduled Task | Preset / Cruise / Trace / Random Scan / Boundary Scanning / Dome Reboot |
| COMPRESSION STANDARD | |
| Video Compression | H.265 / H.264 / MJPEG |
| H.264 Type | Baseline Profile / Main Profile / High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 128Kbps ~ 6Mbps |
| SVC | Support |
| SMART FEATURES | |
| Basic Event | Motion Detection, Video Exception Alarm, SD Card Full, SD Card Error |
| Smart Event | Object Removal Detection, Intrusion Detection, Line Crossing Detection, People Intrusion, People Counting and Face Detection |
| Smart Record | ANR (Automatic Network Replenishment) |
| IMAGE | |
| Max. resolution | 1920 x 1080 |
| Main Stream | 1920 x 1080, 1280 x 720 25/30fps |
| Sub Stream | 25fps (720P, 704 x 576, 352 x 288); 30fps (720P, 704 x 480, 352 x 240) |
| Third Stream | 25fps (704 × 576, 640 × 480, 352 × 288); 30fps (704 × 480, 640 × 480, 352 × 240) |
| Image Enhancement | WDR / HLC / BLC / 3D DNR / Defog / Regional Exposure / Regional Focus |
| NETWORK | |
| Network Storage | Micro SD / SDHC / SDXC Slot (up to 256GB) with video and still image capture function |
| Protocols | HTTP, HTTPS, IPv4 / IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE |
| API | ONVIF, Support AVYCON SDK and Third-Party Management Platform |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 16 users, 3 levels: Administrator, Advanced User and Normal User |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control; IP address filtering |
| Client | AVYCON CVMS 2.0 LITE; and AVY Mobile CVMS |
| Web Browser | WIE8-11, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 |
| INTERFACE | |
| Network Interface | 1 RJ45 10M/100M Adaptive Ethernet ( Support PoE 802.3.at ) |
| GENERAL | |
| Power | DC12V or PoE+ (802.3.at, class 3), (Max 22W, include IR on, Heater on, Fan working) |
| Working Environment | IP 66 Standard, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Defrost | Built-in automatic feature; Below -13°F (-25°C): Heater turns on / -5°F~ 59°F (-5°~15°C): Heater + Fan turns on (fan blow the glass to remove condensation) / 64°F~68°F (18°C~20°C): Heater turns off (settings can’t be modified or scheduled) |
| Protection Level | ADC12, PC, PC+10%GF |
| Material | Aluminum Alloy; PC + GF10% |
| Dimensions | Φ6.81" × 10.55" (Φ173mm × 268mm) |
| Weight | Approx. 13.22 lb. (2.1 Kg) |
| DORI | |
| Definition | Detect: 25 px/m, Observe: 63 px/m, Recognize:125 px/m, Identify: 250 px/m |
| Distance(Tele) | Detect: 5240ft (1600m), Observe: 2083ft (635m), Recognize: 1050ft (320m), Identify: 525ft (160m) |
