AVC-NMS51P20 요약정보 및 구매

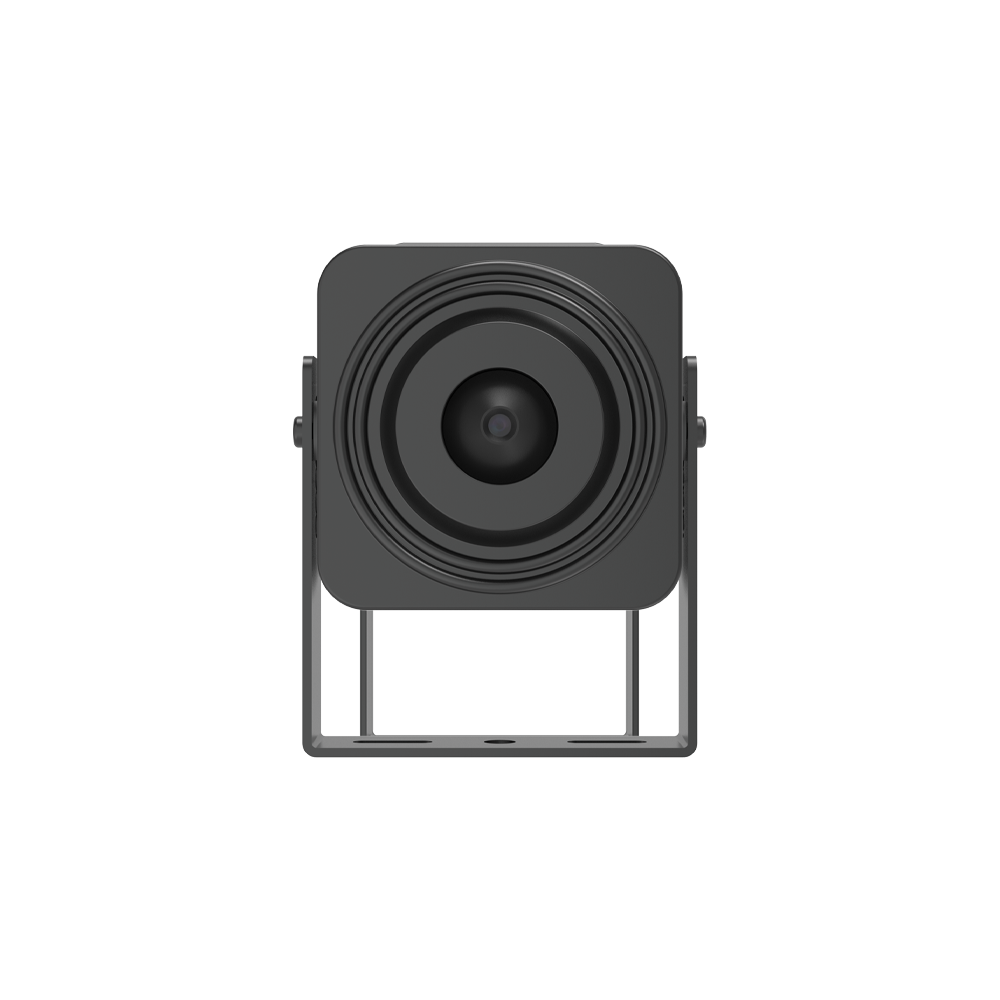

5MP H.265 FIXED MINIATURE NETWORK CAMERA

상품 선택옵션 0 개, 추가옵션 0 개

• 5MP (2880x1620) @ 30fps
• Max. Resolution: 2880x1620
• Supports Smart H.265/H.264 Encoding
• Fixed 2.0mm Lens
• 3D DNR, WDR, BLC, HLC and ROI Encoding
• Supports Triple Streams
• Supports ONVIF Profiles G/M/S/T
• Operating Temperature: -31° ~ 140°F
• DC12V / PoE (802.3af)
• NDAA Compliant

Specifications Features Technology Documents Software Accessories

5MP FIXED MINIATURE NETWORK CAMERA

• 5MP (2880x1620) @ 30fps

• Max. Resolution: 2880x1620

• Supports Smart H.265/H.264 Encoding

• Fixed 2.0mm Lens

• 3D DNR, WDR, BLC, HLC and ROI Encoding

• Supports Triple Streams

• Supports ONVIF Profiles G/M/S/T

• Operating Temperature: -31° ~ 140°F

• DC12V / PoE (802.3af)

• NDAA Compliant

VIDEO
Imaging Device	1/2.7" Progressive CMOS
Effective Pixels	5MP 2880(H) x 1620(V)
Min. Illumination	Color 0.004lux @ F1.6(AGC ON); B/W 0 lux @ IR ON
LENS TYPE
Focal Length (Zoom Ratio)	2.0mm
Max. Aperture Ratio	F 2.8
Angular Field of View	Horizontal: 96°, Vertical:49°, Diagonal: 118°
Min. Object Distance	0.98ft (0.3m)
Lens Type	Fixed (M12)
OPERATIONAL
IR Viewable Length	N/A
Camera Title	Title displayed up to 31 characters
Day & Night	IR cut filter with auto switch (Day/Night/Image/Schedule)
Backlight Compensation	Off/On (5 Zone)
Wide Dynamic Range	WDR
Digital Noise Reduction	3D DNR
Motion Detection	Off/On (8 Level)
Privacy Masking	Off/On (4 Zone, Rectangle)
Gain Control	Auto
White Balance	Auto/Manual
Electronic Shutter Speed	1/5 ~ 1/20000s
On-Board Storage	N/A
Alarm I/O	N/A
Audio I/O	1 input, 1 output
Hardware Reset	Yes
Analytics	Face Detection, Human & Vehicle Detection, Intrusion Detection, Tripwire Detection, Stationary Object Detection, Tripwire Count, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare Sound Detection, Loitering Detection, Region Entrance Detection, Region Exiting Detection
NETWORK
Ethernet	RJ45(10/100BASE-T)
Video Compression Format	H.265+, H.265, H.264+, H.264, MJPEG
Resolution	Main Stream@30fps 5MP(2880x1620), 4MP(2560x1440), 3MP(2304x1296), 1080P(1920x1080), 720P(1280x720) Sub Stream@30fps 720P(1280x720), VGA(640x480), QVGA(320x240) Mobile Stream@30fps VGA(640x480), QVGA(320x240)
Video Quality Adjustment	256Kbps ~ 8Mbps
Bitrate Control Method	CBR/VBR
Streaming Capability	Triple-Stream (Main/Sub/Mobile)
Protocol	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Web browser	IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above
Security	IP address filter; Complicated password; Authenticated username and password
Streaming Method	Unicast/Multicast
Application Programming Interface	ONVIF Profile G/M/S/T
ENVIRONMENTAL
Operating Conditions	-31 ~ 140°F (-35 ～ +60°C) / less than ∠ 90% RH
ELECTRICAL
Input Voltage / Current	DC12V/PoE (IEEE802.3af)
MECHANICAL
Material	Metal
Dimension	1.50 x 1.50in (38.31 x 38.31mm)
Weight	0.66lb (300g)
