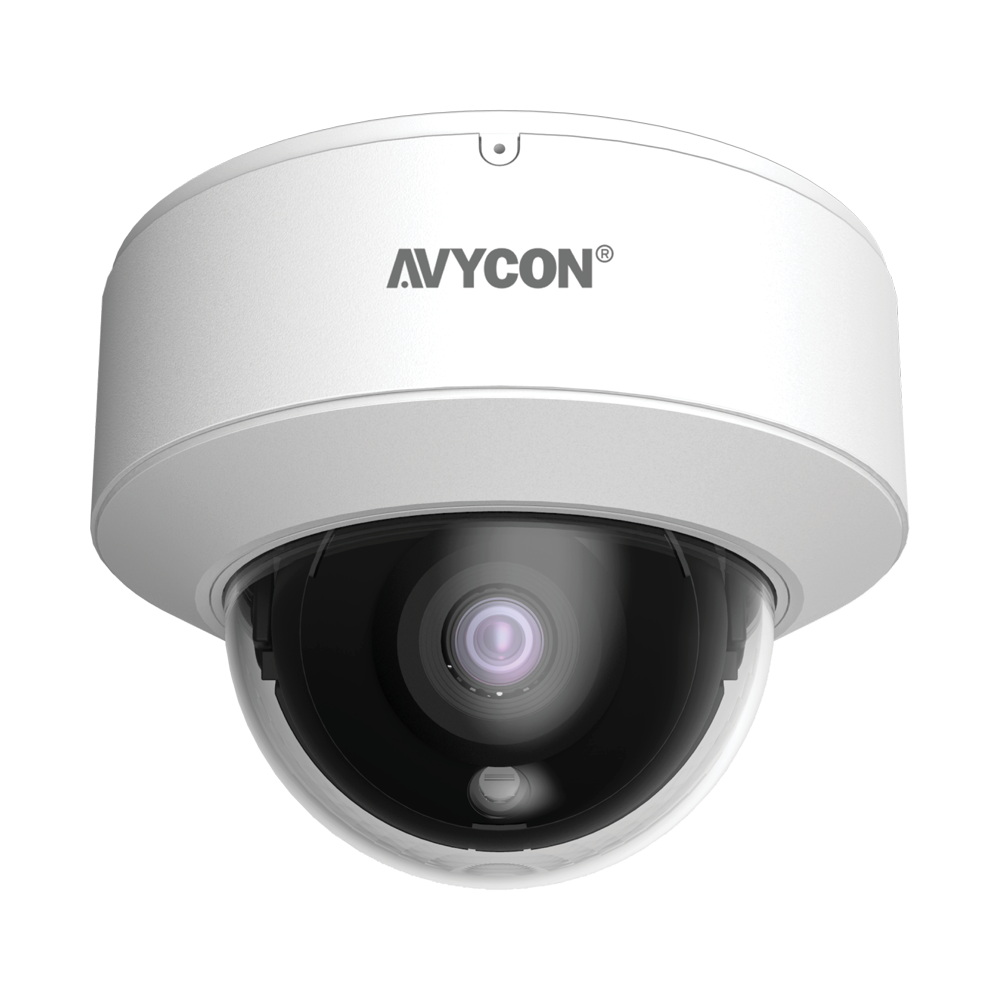

4MP H.265 NETWORK IR OUTDOOR VANDAL DOME CAMERA
The AVC-VNN41FLT/2.8 is our newest 4MP H.265 Vandal Dome Outdoor IP Camera with a 2.8mm fixed lens and featuring our newest generation of video analytics. This camera supports True Day/Night mode, True WDR capabilities and also includes a microSD memory card slot for standalone recording applications. The AVC-VNN41FLT/2.8 can be powered by both PoE(802.3af) and DC12V and also includes a hardware reset button. Integrated Video Analytics include Missing/Abandoned Objects, Line Crossing, Heat Map, Vehicle/People Counting and Facial Detection.
• 4MP H.265 Real Time Encoding
• Maximum Resolution: 2592 x 1520
• Fixed 2.8mm Lens
• Smart IR Illumination Up to 98ft(30m)
• True Day / Night
• Hardware Reset
• Built-in micro SD card slot with video and still image capture function (up to 256GB)
• Supports Three Streams
• NAT/P2P Function Optional
• Video Analytics: Line Crossing, Heat Map, People / Car Counting, Facial Detection, etc.
• Supports Remote Monitoring by Smart Phones & Tablet PCs with iOS and Android OS
• IP67 Outdoor Rating
• IK10 Ingress Protection
• DC12V / PoE (802.3af) <7W
• NDAA Compliant
• UL-listed
| CAMERA | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Resolution | 4MP |
| Image Size | 2592 x 1520 |
| Electronic Shutter | 1/30s to 1/100,000s |
| Iris Type |
Fixed Iris |
| IR Distance |
Up to 98ft. (30m) |
| Min. Illumination |
0.05luxF1.6(AGC ON), 0Lux with IR ON |
| Lens | Fixed 0.1"(2.8mm) Lens @F1.6; Horizontal Field of View: 100.4° |
| Lens Mount |
M12 |
| Angle Adjustment | Pan: 0°~355°, Tilt: 0°~67°, Rotation: 0°~355° |
| Wide Dynamic Range | 120dB |
| Digital NR | Yes (3D DNR) |
| Backlight Compensation (BLC) | Yes |
| Defog | Yes |
| HLC | Yes |
| Sharpness |
Yes |
| Language |
Support for 12 Different Languages |
| VIDEO STREAM | |
| Max. Image Resolution | 2592 x 1520 |
| Primary Stream | (2592 x 1520): 30fps (2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720): 30fps / HFR Mode: (1920 x 1080, 1280 x 720): 60fps |
| Secondary Stream | (1280 x 720, 720 x 480, 352 x 240): 30fps |
| Tertiary Stream | (720 x 480, 480 x 240, 352 x 240): 30fps |
| Video Compression | Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
| Video Bit Rate | 64 Kbps~8Mbps (CBR / VBR Adjustable) |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. |
| NETWORK | |
| Ethernet | 1 x RJ45 10M / 100M Ethernet Port |
| Network Storage | Network Remote Storage |
| Remote Monitoring | Web Browser Interface, AVYCON CVMS / CVMS 2.0, Mobile App |
| Online Connections | Supports up to 10 Concurrent Users |
| Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS |
| AUDIO | |
| Audio Compression | G711A / U |
| Audio | 1CH Built-in MIC |
| Audio I/O | 1/1 |
| SYSTEM | |
| Alarm | 1/1 |
| Local Storage | Micro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function |
| Advanced Function | Video Masking, Non-Photosensitive Switch, Watermarking, IP Address Filtering, Image Distortion Correction, Heartbeat Tracking |
| Event Trigger | Motion Detection, IP Address Conflict, Cable Disconnection |
| Event Action | Password Protection, SD Card Error, SD Card Full |
| Video Analytics | Region Entrance, Region Exit, Intrusion Detection, Line Crossing Detection, Human Counting, Vehicle Counting, Human Tracking, Face Capture, Face Detection, Heat Map, Crowd Density Detection, Video Tampering Detection, Scene Change Detection, Abandoned Object Detection, Missing Object Detection |
| GENERAL | |
| Supported Protocols | ONVIF Profiles S, G, and T |
| Input Voltage | DC 12V (±10%) / PoE(802.3af) |
| Power Consumption | <7W |
| Hardware Reset | Yes |
| Ingress Protection | IP67 |
| Housing Protection | IK10 |
| Working Environment | -22°~140° F (-30°~60° C) |
| Working Humidity | <95% (Non-Condensing) |
| Weight | 1.4lbs |
| Dimensions | 4.69" x 3.44" (119.0mm x 87.4mm) |
| Certificate | CE, FCC, UL |
