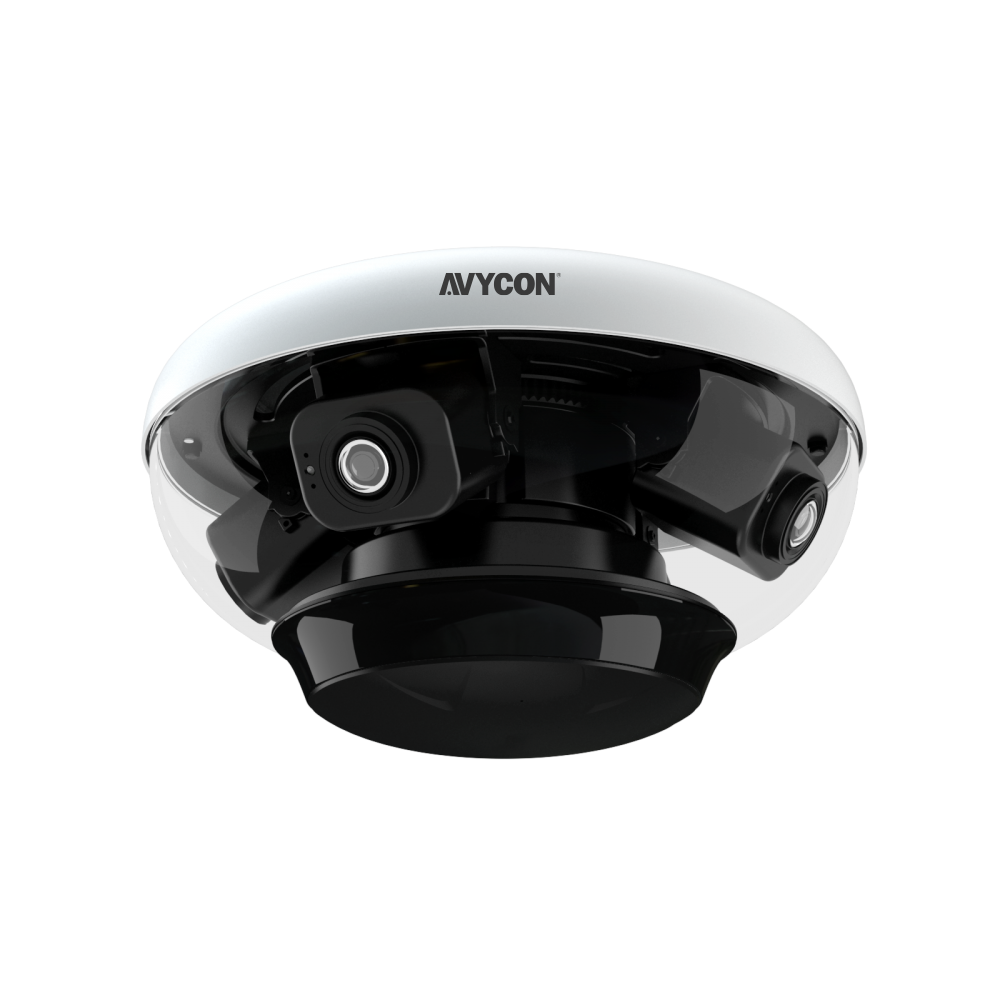

8MP MULTI-SENSOR QUAD-DIRECTIONAL IR VANDAL DOME NETWORK CAMERA
The AVYCON AVC-N4M81F360 camera is a 8MP H.265 Vandal Dome Network Camera. This 8MP IP camera supports True Day and Night mode, PoE, up to 82ft. of Smart IR Illumination, and also incorporates an InfiniteStar sensor which allows viewing of video in the lowest of light environments, even in color. This camera includes a 4.0mm Lens x 4CH, each module could circularly slide 0°~95° and vertically rotate 30°~70°. Includes a MicroSD memory card slot for standalone recording applications.
· 8MP ( 3840 x 2160 ) @ 30fps
· Max. Resolution: 3840 x 2160
· One dome camera contains 4 sets of IP cameras, each to different direction
· Each module could circularly slide 0°~95°and vertically rotate 30°~70°
· Each module delivers max 2M (1920x1080P) full HD @25/30fps video stream
· Supports Smart H.265/H.264 Encoding
· True Day & Night ICR
· 360°(H)x90°(V) circular IR illumination, Up to 82 ft. IR Illumination
· 4.0mm lens x 4CH, F1.6
· Supports Remote Access with Windows, macOS, iOS and Android
· Support PoE+(802.3.at, class4) and DC24V / AC24V
· Built-in micro SD card slot with video and still image capture function (up to 256GB)
| CAMERA | |
| Image Sensor | 1/2.8" Progressive Scan CMOS x 4CH |
| Resolution | 8MP |
| Image Size | 3840x2160 |
| Min. Illumination | Color：0.005Lux @ (F1.6，AGC ON)；B/W：0.001Lux @(F1.6，AGC ON);0Lux with IR |
| Shutter Speed | 1/1 s – 1/100,000 s |
| IR Distance | Up to 82ft, 360°(H) x 90°(V) |
| Smart IR | Yes |
| Lens | 4.0mm lens x 4CH, F1.6 |
| Field of View | Horizontal: 90°, Vertical: 50° |
| VIDEO STREAM & AUDIO | |
| Max. Image Resolution | 3840 x 2160 @ 30fps |
| Stream 0 | Panoramic view: 3840×2160,2560×1440,1920×1080 (1~30fps) |
| Stream 1 | CH1:1920×1080,1280×720,720×480 (1~30fps) |
| Stream 2 | CH2:1920×1080,1280×720,720×480 (1~30fps) |
| Stream 3 | CH1:1920×1080,1280×720,720×480 (1~30fps) |
| Stream 4 | CH2:1920×1080,1280×720,720×480 (1~30fps) |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Audio Compression | G.711 A/U |
| Live View | Up to 6 channels |
| User/Host | Up to 16 users, 3 levels: Administrator, Advanced User and Normal User |
| NETWORK | |
| Ethernet | 1 x RJ45 10M / 100M |
| ONVIF | ONVIF( Profile S/G/T, 20.06) |
| Protocol |
HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP,DHCP, PPPoE |
| Security |
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control; IP address filtering |
| IMAGE | |
| Day & Night | (Day/Night/Auto/Schedule) |
| Gain Control | Auto/Manual/Indoor/Outdoor |
| White Balance |
Auto/Manual/Indoor/Outdoor |
| Privacy Mask |
Off/On (1 Zone) |
| Sharpness |
Yes |
| Image Setting |
Yes |
| VIDEO ANALYTICS | |
| Smart Features | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, SD full, SD error) |
| Smart Events | Up to 4 regions configurable: Human/vehicle detection and classification, Face comparison, Intrusion detection,Line crossing detection, Region entrance detection, Region exiting detection, Unattended baggage detection, Object removal detection, Scene change detection. |
| ROI | Up to 4 regions configurable |
| Alarm Link Events | Upload to FTP/Memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture |
| Alarm | 1CH alarm input; 1CH alarm output |
| Audio | 1CH audio input; 1CH audio output |
| Built-In Storage | Micro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function |
| GENERAL | |
| Power | AC24V,DC24V,PoE+ (802.3.at, class 4) (Max 25W, include IR on) |
| Working Temperature | -22 °F ~ 131 °F (-30°C ~ 55°C ) |
| Protection | IP 66, IK10 |
| Material | Aluminum Alloy; Plastic |
| Dimensions | Ø10.7” x 7” (Ø273mm x 180mm) |
| Weight |
7.18lb (3.26Kg) |
