Plug & Play Series

AVC-NPTZ51X30L 요약정보 및 구매

5MP FULL-SIZE PTZ DOME NETWORK CAMERA

상품 선택옵션 0 개, 추가옵션 0 개

· 5MP (2592 × 1944) @ 30fps / 1080P @ 60fps
· Max. resolution: 2592 x 1944
· Supports Smart H.265/H.264 encoding
· True Day & Night ICR with InfiniteStar™ Technology
· Up to 0.005Lux Sensitivity with InfiniteStar™ Technology
· Up to 656ft. IR Illumination
· IR Anti-reflection Design
· 30X Optical Zoom
· 3D DNR, True WDR, HLC, BLC and ROI encoding
· 360° Endless Pan
· Supports PTZ Auto Tracking
· 1 channel Audio input; 1 channel Audio output
· 4 channel Alarm input; 2 channel Alarm output
· Built-in micro SD card slot with video and still image
  capture function (up to 256GB)
· AC 24V (3A) / PoE+ (802.3at, 25.5W Max)
· IP66 Ingress Protection
· Supports remote access with Windows, macOS, iOS and Android
· Operating Temperature: -40°F - 140°F, less than 90% RH

5MP FULL-SIZE PTZ DOME NETWORK CAMERA

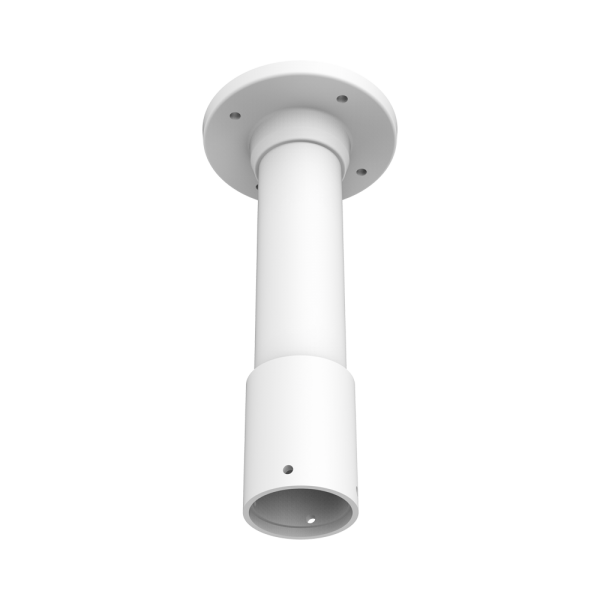

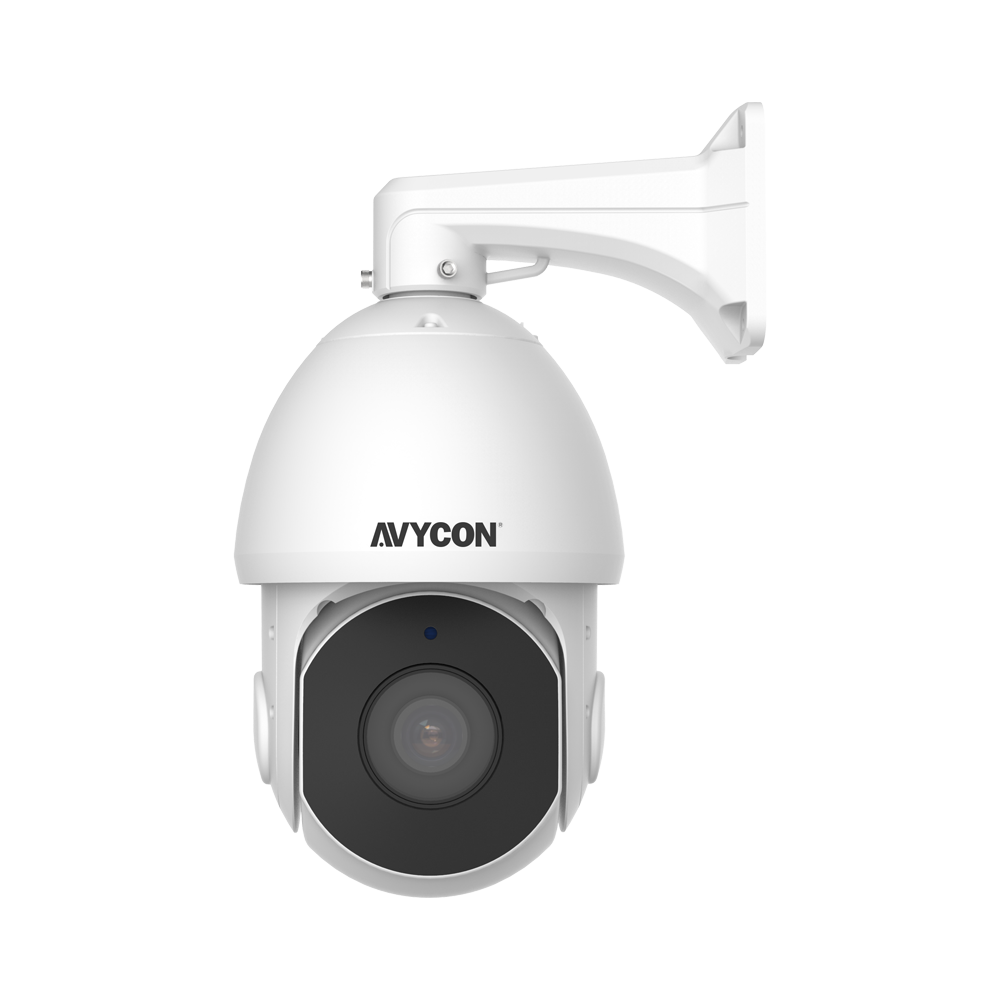

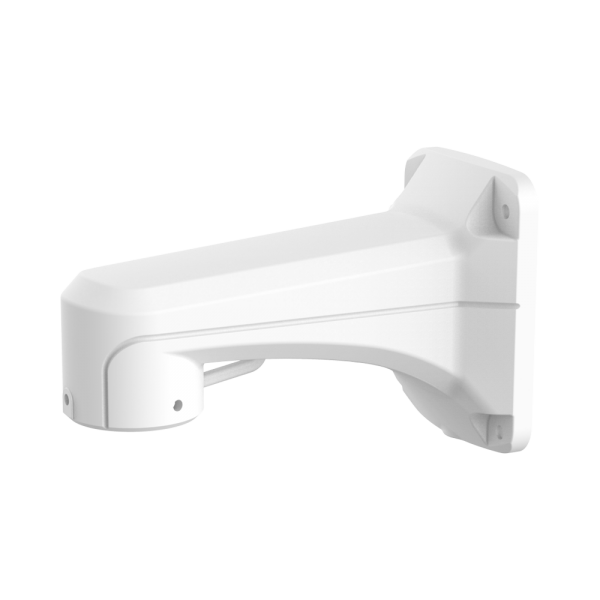

The AVYCON AVC-NPTZ51X30L camera is a 5MP 30X PTZ Dome Network Camera using InfiniteStar™ technology, with an ultra-low 0.005 lux sensitivity, providing crisp color images of the environment even at night. This camera supports True Day and Night mode, PoE, and up to 656ft. of Smart IR Illumination. The camera also features Alarm Input/Output connections, Audio Input/Output, a microSD slot (256GB max capacity), and is ONVIF Profile G, Q, S, T and API Compliant. Optional accessories for this camera include Junction Box, Wall, Ceiling, Pole and Corner Mounts.



· 5MP (2592 × 1944) @ 30fps / 1080P @ 60fps

· Max. resolution: 2592 x 1944

· Supports Smart H.265/H.264 encoding

· True Day & Night ICR with InfiniteStar™ Technology

· Up to 0.005Lux Sensitivity with InfiniteStar™ Technology

· Up to 656ft. IR Illumination

· IR Anti-reflection Design

· 30X Optical Zoom

· 3D DNR, True WDR, HLC, BLC and ROI encoding

· 360° Endless Pan

· Supports PTZ Auto Tracking

· 1 channel Audio input; 1 channel Audio output

· 4 channel Alarm input; 2 channel Alarm output

· Built-in micro SD card slot with video and still image capture function (up to 256GB)

· AC 24V (3A) / PoE+ (802.3at, 25.5W Max)

· IP66 Ingress Protection

· Supports remote access with Windows, macOS, iOS and Android

· Operating Temperature: -40°F - 140°F, less than 90% RH


Features - WDR.pngFeatures - InfiniteStar.pngFeatures - H265.pngFeatures - IK10.pngFeatures - Intelligent Video Analytics.pngFeatures - Advanced Edge Recording.pngFeatures - Smart IR.png
CAMERA
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005Lux@F1.2, Color: 0.008Lux@F1.5, B/W: 0Lux with IR on
WDR 120 dB True WDR
Shutter Speed 1/100,000s ~ 1s
IR Distance Up to 656ft (200m)
IR Angle Auto/Manual
Day & Night True- ICR Filter Auto Switch
S/N >55dB
Digital Zoom 16x
Focal Length
4.7 ~ 141mm @ F1.5 ~ F4.0, 30X Optical Zoom
Zoom Speed
6 sec (Full Zoom)
Field of View Horizontal: 58° ~ 3° / Diagonal: 71° ~ 3° / Vertical: 44° ~ 2°
Min. Working Space 100 ~ 1500mm
PTZ
Pan Range 360° Endless
Pan Speed Manual Pan Speed: 0.1° ~ 400°/s, Preset Pan Speed: 400°/s
Tilt Range 0° ~ 90° (Auto Flip)
Tilt Speed Manual Tilt Speed: 0.1° ~ 320°/s, Preset Tilt Speed 320°/s
Proportional Zoom Supported
Number of Presets 255
Preset Freezing Supported
Patrol 8 Patrols, up to 48 presets each patrol
Pattern 4 Patterns
Power Off Memory Supported
PTZ Position Display On / Off
3D Positioning Supported
VIDEO STREAM
Max. Image Resolution 2592 x 1944 - 30fps @ (2592 x 1944)
Primary Stream (2592 x 1944): 30fps, (2048 x 1536): 45fps,
(1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576): 60fps

Secondary Stream (704 x 576, 640 x 480, 640 x 360, 352 x 288, 320x240, 320 x 192, 320 x 180): 60fps
Tertiary Stream (1920 x 1080, 1280 x 720, 704 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 192, 320 x 180): 30fps
Video Compression H.265+ / H.265 (HEVC) / H.264+ / H.264 / MJPEG
Video Bit Rate 16Kbps ~ 16Mbps (CBR / VBR Adjustable)
Image Settings Brightness / Contrast / Saturation / Sharpness
NETWORK
Web Access Supports IE / Firefox / Chrome / Safari Browsers
Ethernet 1 x RJ45 10M / 100M Ethernet Port
Network Storage
NAS (Supports NFS, SMB / CIFS), ANR
Protocol IPv4 / IPv6, ARP, TCP, UDP,RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP,FTP, NTP, SMTP, UPnP, SIP, SNMP, PPPoE,
VLAN,802.1x, QoS, IGMP, ICMP, SSL, Bonjour
AUDIO
Audio Compression G.711 / AAC / G.722 / G.726
Audio I / O 1/1
SYSTEM
Alarm I / O 4/2
Local Storage Micro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function
Advanced Function Auto Tracking, Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, ROI, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker,
Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification
Video Analytics Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection,
People Counting, Object Left, Object Removed
GENERAL
System Compatibility ONVIF Profile G & Q & S & T, API
Working Temperature -40°~ 60°C (-40° ~ 140°F)
Working Humidity 0~90% (Non-Condensing)
Power Supply AC 24V / 3A±10% / PoE+ (802.3at)
Power Consumption 13.5W MAX/ 25.5W MAX(With IR on)
Ingress Protection IP66 Rated
Vandal Resistance IK10 Rated Metal Housing (Optional)
Surge Protection 6 KV
Weight 8.8lbs (4Kg)
Dimensions 8.1” x 12.1” (205mm x 308mm)

5MP FULL-SIZE PTZ DOME NETWORK CAMERA

Technology - Anomaly Detection.pngTechnology - Auto Tracking.pngTechnology - Line Crossing.pngTechnology - Object Abandonment.pngTechnology - People Counting.pngTechnology - Region Entrance and Exit.pngTechnology - Tamper.pngTechnology - People and Vehicle Detection.pngTechnology - Loitering Detection.png
