AVC-PNN41X40LW 요약정보 및 구매

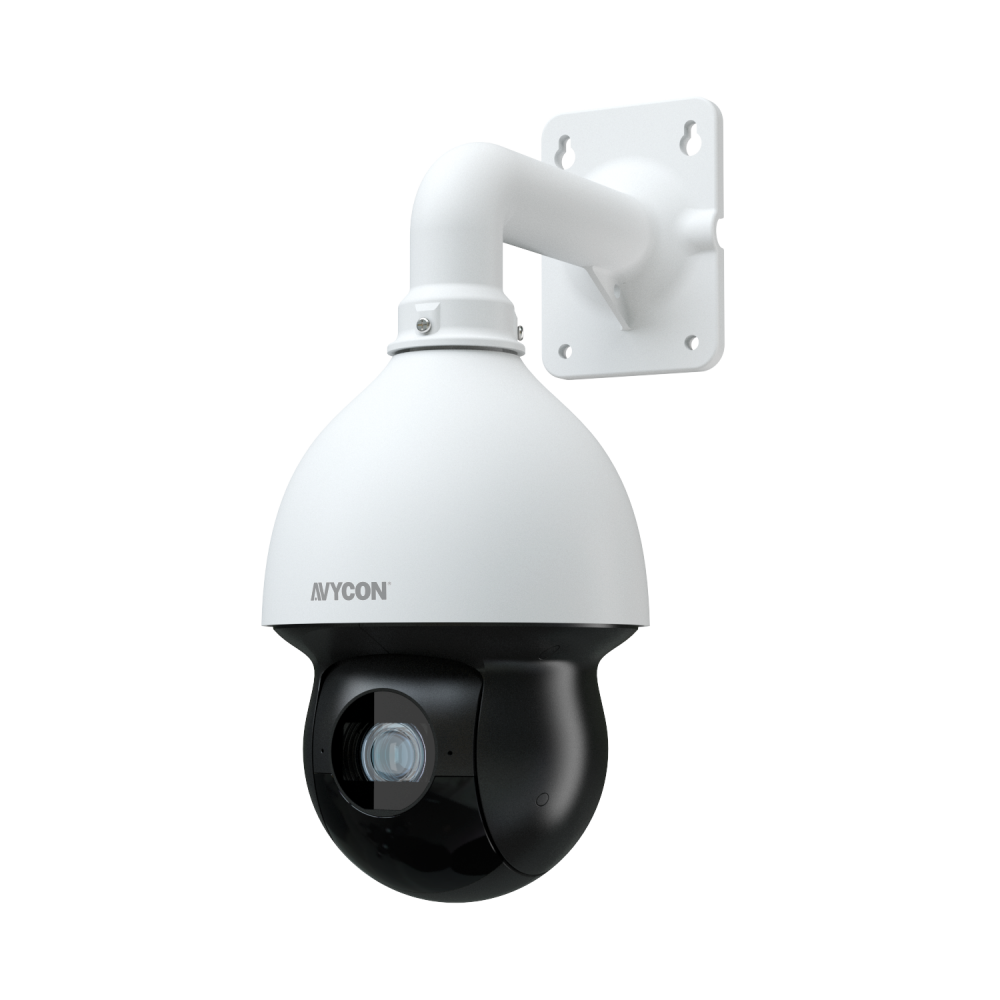

4MP NETWORK IR SPEED DOME CAMERA

상품 선택옵션 0 개, 추가옵션 0 개

• High Efficiency Video Coding (H.265)
• 1/2.8" 4MP Progressive Scan CMOS
• Up to 2560x1440 @30fps Resolution
• Min. illumination: Color: 0.005 Lux @ (F1.2, AGC ON); B/W: 0.001 Lux @(F1.2，AGC ON); 0Lux with IR
• 40× Optical Zoom
• HDR, 3D DNR, Smart IR
• Up to 1148 ft. (350m) smart IR distance
• PoE+ and DC24V
• IP66, Aluminum Alloy & Plastic
• Support H.265+/H.265 Video Compression
• Intelligent Video content analytics
• Smart tracking of human/vehicle
• Smart detection and perimeter protection
• Wall mount included
• Built-in micro SD card slot with video and still image
  capture function (up to 256GB)
Specifications Features Technology Documents Software Accessories

4MP NETWORK IR SPEED DOME CAMERA


The AVC-PNN41X40LW camera is a 4MP Network Camera using Infinite-Star™ technology, with an ultra-low lux sensitivity, providing crisp color images of the environment even at night. Featuring powerful optical zoom and accurate pan/tilt/zoom performance, the camera provides a wide monitoring range and great detail. The camera delivers 8MP full high definition resolution at 25/30fps. The camera is equipped with smooth control, high quality image, and good protection, meeting compact size demands of video surveillance applications.


• High Efficiency Video Coding (H.265)

• 1/2.8" 4MP Progressive Scan CMOS

• Up to 2560x1440 @30fps Resolution

• Min. illumination: Color: 0.005 Lux @ (F1.2, AGC ON); B/W: 0.001 Lux @(F1.2，AGC ON); 0Lux with IR

• 40× Optical Zoom

• HDR, 3D DNR, Smart IR

• Up to 1148 ft. (350m) smart IR distance

• PoE+ and DC24V

• IP66, Aluminum Alloy & Plastic

• Support H.265+/H.265 Video Compression

• Intelligent Video content analytics

• Smart tracking of human/vehicle

• Smart detection and perimeter protection

• Wall mount included

• Built-in micro SD card slot with video and still image capture function (up to 256GB)


Features - WDR.pngFeatures - InfiniteStar.pngFeatures - H265.pngFeatures - Advanced Edge Recording.pngFeatures - Smart IR.pngFeatures - Defogging.png
CAMERA
Image Sensor 1/2.8" progressive scan CMOS image sensor
Max Resolution 2560x1440
Mini. Illumination Color：0.005 Lux @ (F1.2，AGC ON)；B/W：0.001 Lux @(F1.2，AGC ON);0Lux with IR
Image Setting Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, etc. adjusted by client
Shutter Speed 60Hz: 1/30s – 1/30,000s@30fps; 50Hz: 1/25s~1/25,000s@25fps
White Balance Auto/Manual/Indoor/Outdoor
Gain Control Auto/Manual
Day & Night Control Auto/Manual ,time schedule
Iris Control Auto/Manual
SNR ≥52dB
3D DNR Auto/Manual
AE Enhancement BLC, HLC, WDR
Digital Zoom 8X
EIS N/A
Privacy Mask 4mask. (Ver 5.1.3 update:24 programmable polygon privacy masks, color or mosaic configurable)
Picture Overlay Logo picture could be overlaid on video with 128×128pixels, 24bits format
OSD Overlay Max 15 characters/line, 8 lines, white or red font color
LENS
Focus Length f=4.5-180mm lens, 40x optical zoom
Zoom Speed Approx. 5.2s (optical zoom, wide-tele)
Field of View H: 59.1° ~1.8°; V: 38.4° ~ 1.1° ; D: 6.9° ~ 2.1° (wide-tele) ±5%
Image Distance Wide: 1.0m ~ INF; tele: 1.5m ~ INF
Aperture Distance F1.2-F3.5(W-T)
Iris Type DC_IRIS
IR Cut Type Removable IRCF, absorbing type, reducing image flare/ghost
DORI Distance Focus length: f=4.5mm, Detect: 99.6m (326.8ft), Observe: 39.5m(129.7ft), Recognize: 19.9m(65.4ft), Identify: 10m(32.7ft)
PTZ
Pan Range 360°endless
Pan Speed Configurable, from 0.1~360°/s; Preset speed: 330°/s
Tilt Range From -25° to 155°, auto flip at 90°
Tilt Speed Configurable, from 0.1°~210°/s, Preset speed: 180°/s
Proportional Zoom Yes
Preset 360
Cruise 8 cruises, up to 16 presets (ver5.1.3 update:32presets) for each cruises
Trace 4 traces, record time over 3 minutes(ver5.1.3 update: 10minutes) for each trace
Power Off Memory Support
Action Mode Preset/Cruise/Trace/Auto Scan/Random Scan
3D Positioning Support
PTZ Status Display Support
Schedule Task Preset/Cruise/Trace/Random Scan/Boundary Scanning /Dome reboot
IR
IR Distance 350m (1148 f.t.), 850mm IR
Smart IR Yes
NETWORK
Main Stream 50Hz: 25fps: 2560 × 1440, 1920×1080, 1280×960, 1280×720;
60Hz: 30fps: 2560x1440, 1920×1080, 1280×960, 1280×720
Sub Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288);
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression H.265+/H.265/H.264+/H.264/MJPEG
H.264 Standard H.264/AVC codec BP/MP/HP, Level 5.1
H.265 Standard H.265/HEVC codec MP, level 5.0
Video Bit Rate 64 Kbps to 16Mbps
Audio Compression G.711 A/U
Audio Bit Rate 64K bps
Protocols HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, DHCP, PPPoE, P2P, RTMP
User / Host Up to 16 users, 3 levels: Administrator, Advanced User and Normal User
Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control;
IP address filtering
API ONVIF, Support AVYCON API and Third-Party Management Platform
Client AVYCON CVMS 2.0 Lite
Web Browser IE8-11 with plug-in; Edge, Chrome, Firefox with plugin free
SMART FEATURES
Basic Event Motion detection, Video tampering alarm, Exception(Network disconnected, IP address conflict, SD full, SD error)
Face Recognize (Default off, open per request)Face detection, capturing, comparison. Max 15 faces per scene
Road Traffic Vehicle detecting and tracking. CPL will be available at ver5.1.3
Smart Detection Tripwire, Bi-directional tripwire, Illegal intrusion detection, Region entrance detection, Region exiting detection,
etc. More VCA will be available at ver5.1.3
Smart Tracking support smart tracking of human or vehicle ,auto/manual
SYSTEM INTEGRATION
Alarm Interface 1 Alarm input(Dry contact); 1 Alarm output
Audio Interface 1 audio input, line level, 2.0-2.4Vpp,impedance 1KΩ; 1 audio output, line level, impedance,600Ω
Alarm Linkage Alarm actions, such as Preset, Cruise, Trace, Memory Card Video Record, Trigger Recording, Notify Surveillance Center,
Upload to FTP/Memory Card, Send Email, etc.
Network Interface 1 RJ45 10M/100M Adaptive Ethernet ,Support PoE+
SD Card Slot Micro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function
Built-in Speaker & Mic N/A
RS485 N/A
BNC N/A
Reset button Yes
Electric Heater & Fan Yes
Water Removal Remove water-drops by quick spinning
Demist Active electric heating and air loop
GENERAL
Languages Czech; English, German, Hungarian, Italian, Japanese, Korean, Portuguese, Polish, Russian, Romanian, Spanish, Spanish(Mexico),
Simplified Chinese, Turkish, Traditional Chinese, etc.
Power Supply DC24V±25%, PoE+ (802.3.at,type 2), max 23.5W include IR ON+PTZ working
Working Condition -40°C ~ 65°C (-40°F ~ 149°F), IR off; -40°C ~ 45°C, IR on; Cold start at - 30°C; 90%RH
Storage Condition -40°C ~ 70°C ; ≤ 95% RH
Protection 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Shield Material Aluminum Alloy(ADC12); Polymer(PC+GF15%)
Dimensions Φ 197mm × 302mm (Φ7.8 inch × 11.9 inch )
Net Weight Approx. 2.9 Kg (6.4 lb.)
Certification IP67, IK10(including glass window), ROHS, CE, FC, KC, BIS, UKCA
