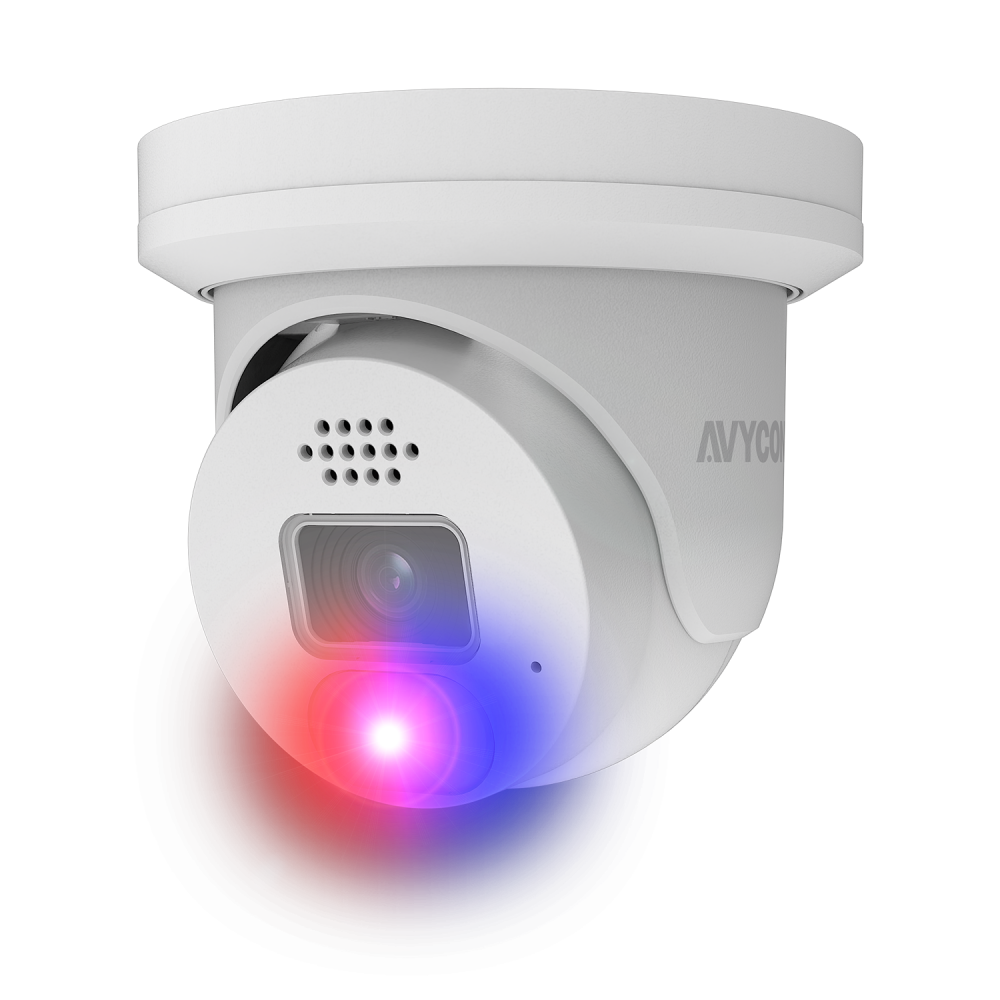

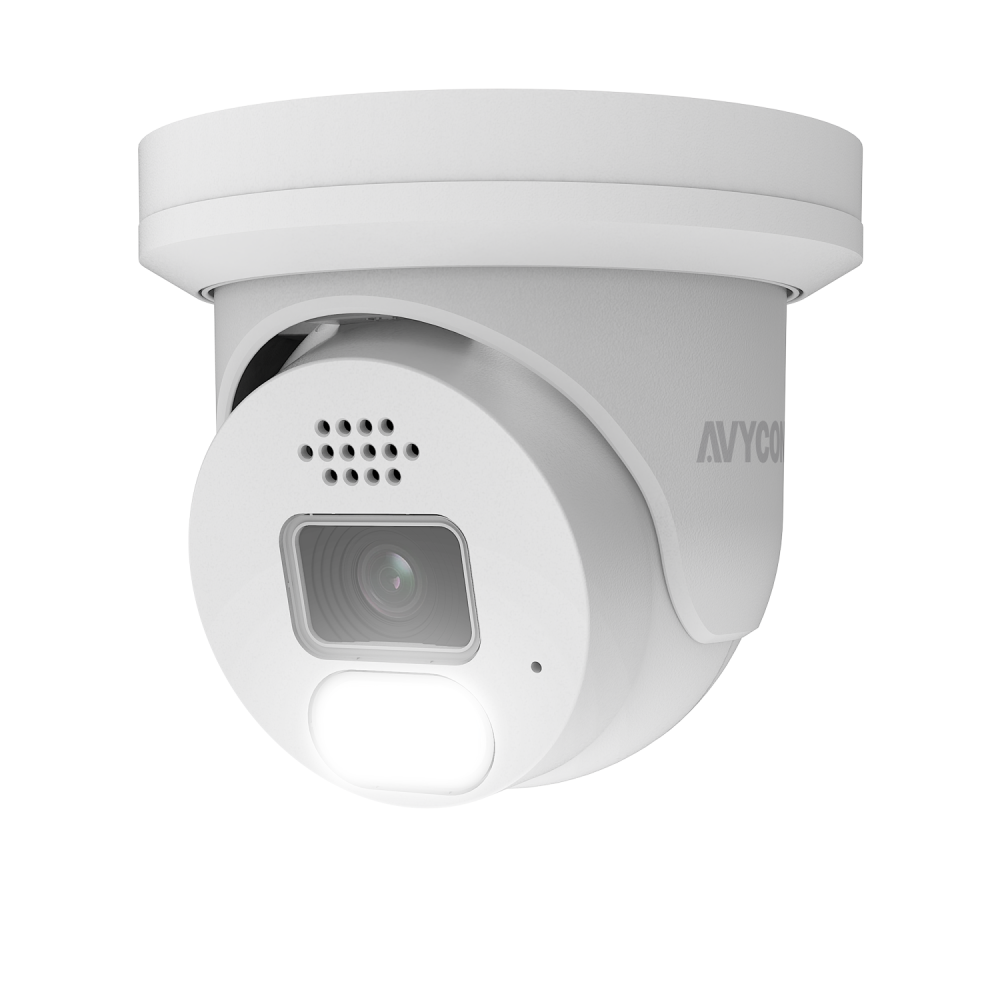

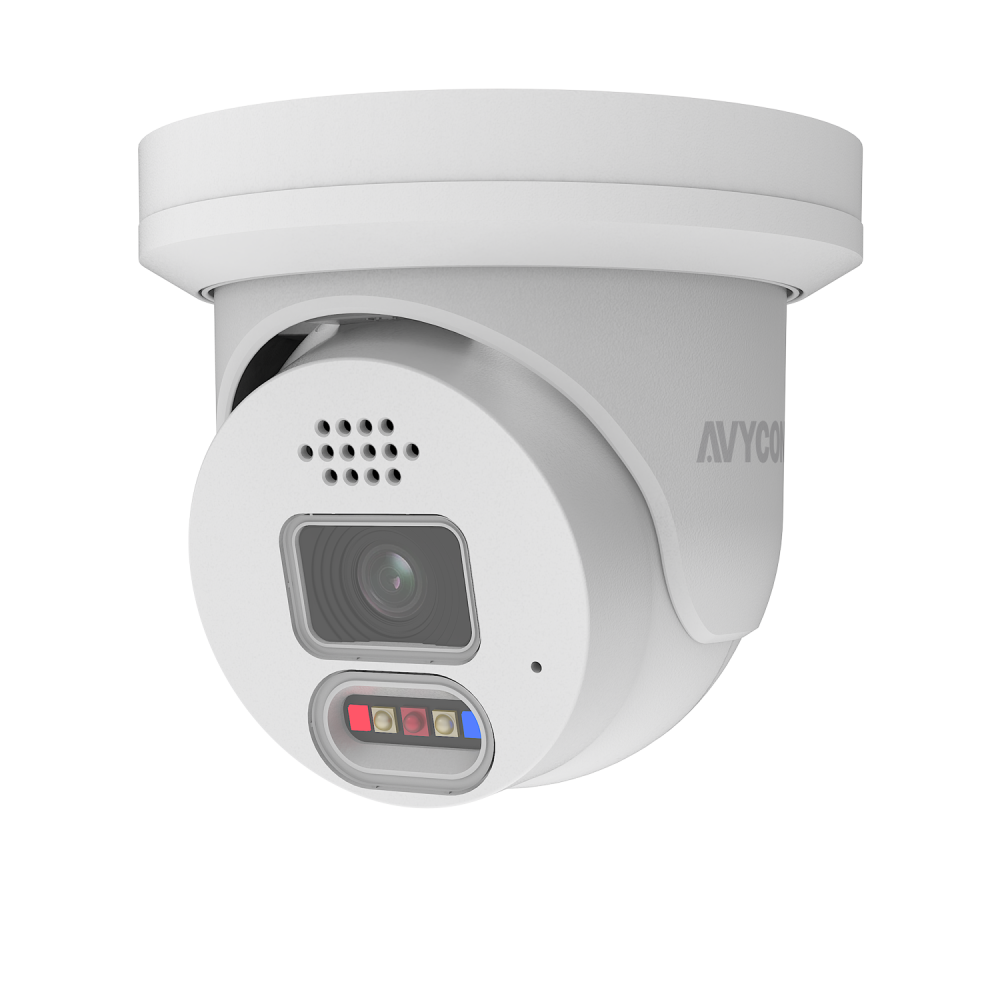

4M Smart Defender Turret Camera
• 4MP (2680x1520) H.265+, H.265, H.264+, H.264, MJPEG
• Max. resolution: 2688x1520
• Full Color / Active Deterrence Camera
• 2.8mm Fixed Lens (F1.0)
• 3D DNR, WDR, HLC, BLC, ROI encoding
• Intelligent Analytics
• White Light LED / Strobe (Blue & Red) Light
• Built-in MIC / Speaker
• Built-in micro SD card slot, up to 256GB
• IP67 ingress protection
• DC12V/PoE power supply
• Support remote monitoring by AVYCON ONE (Mobile APP) and AVYCON CMSONE (CMS)
| Video | |
| Imaging Device | 1/3" |
| Effective Pixels | 4MP 2560(H)×1440 (V) |
| Scanning System | Progressive CMOS |
| Min.Illumination | Color 0.002 Lux @（F1.0，AGC ON) ; B/W 0 lux @ IR ON |
| Lens Type/td> | |
| Focal Length (Zoom Ratio) | 2.8 mm |
| Max. Aperture Ratio | F No. 1.0 |
| Angular Field of View | Horizontal: 95°, Vertical: 51°, Diagonal: 112° |
| Min.Object Distance | 2m |
| Lens Type | Fixed(M12) |
| Operational | |
| IR LED | 1 |
| WarmLight | 2 |
| Red Blue Light | 2（1 Red&1 Blue） |
| IR Viewable Length | Up to 82ft(25m) |
| WarmLight Viewable Length | Up to 65ft(20m) |
| Type of complementary light | Default warm light, switchable infrared light |
| Motion Detection | Off/On (8 Level) |
| Wide Dynamic Range | DWDR |
| Digital Noise Reduction | 3D DNR |
| Image Setting | Full Color Mode/Day&Night Mode/Smart Illumination |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 256GB |
| Alarm | NA |
| Audio | Built-in microphone&Speaker |
| Hardware Reset | Yes |
| Smart Feature | SMD（Pedestrian&Vehicle）/Perimeter Intrusion / Line Crossing/Intrusion/Region Entrance/Region Exiting |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Resolution | Main Stream@25fps : 4MP(2560x1440) Sub Stream@25fps : VGA(640x480) |
| Video Quality Adjustment | 512Kbps ~ 4Mbps |
| Bitrate control method | CBR/VBR |
| IP | IPv4 |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, HTTPS |
| Security | complicated password; Authenticated username and password |
| Application Programming Interface | ONVIF |
| Web Viewer | IE10/11 |
| Environmental | |
| Operating Conditions | -31~140F(-35∼+60°C)/less than ≤ 90% RH |
| Ingress Protection | IP67 |
| Electrical | |
| Input Voltage / Current | D12V/POE(IEEE802.3af) |
| Power Consumption | DC12V ：max 7.1 W； POE（48V): max 8.3W |
| Mechanical | |
| Material | Metal |
| Dimensions(HxWxD) | TBA |
| Weight | 0.68lb(312g) |
4M Smart Defender Turret Camera
