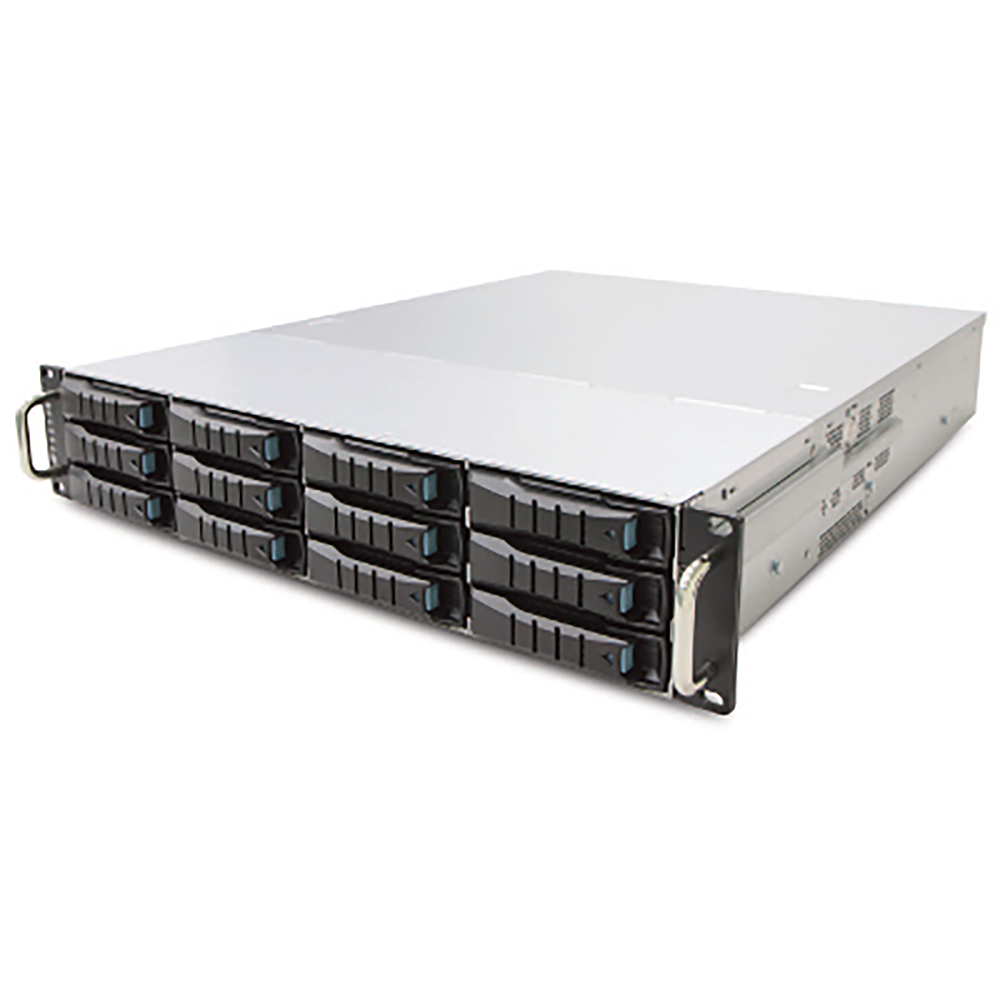

VMSONE NVR Enterprise Class VMS installed, all-in-one IP NVR
- Support 64ch –Maximum 64 IP channels are supported per server. Hundreds of heterogenous devices and cameras are supported. Typically, 300Mbps recording done per server, which is one of the industry leading configurations. Full HD (1920x1080) resolution images are stored up to 64 channels at 4Mbps. Full HD 16 channels on screen.
Specialty cameras such as Fisheye, 5M, 10M, 120fps features supported. New camera integration support.
- True All-in-one NVR – Unlike other NVRs focusing on recording performance only, our NVR adds video recording, remote monitoring, in-system local monitoring all in one box. Real-time monitoring of 32ch HD video, 16ch full HD video, or 64ch D1 video using a monitor connected to an on-site NVR using the Open264 codec specialized for multi-channel monitoring. Additional monitoring client system is now an option, rather than a necessity.
- Qualified Solution – Real site running more than 5,000 channels, Korea local no.1 vendor, Asia Pacific no.5 vendor, Asia’s first locally developed VMS, all refers to the technical and commercially successful VMS and NVR. International support networks and partners ensure your successful business.
- Scalability – Multi-Client license will enable you to control and monitor up to 4 NVR servers to combine up to 256 channel site designs. Additional scalability can be achieved through upgrading to the VMSONE VMS system which will be capable of thousands of cameras.
- Technology – Advanced technology proven by patents and certifications, satisfied customers by customer support and ISO 9001 certifications. Future proof engineering efforts according to technology trends will give you peace of mind. H.265 ready solutions are being prepared with Cloud, Virtual Machine support for certain product lines for enhanced customer demands
- Support E-map – New E-map version 3.0 provides better map-camera-event integration. Multi- layered map structure provides detailed situational awareness viewing on the map. This version will be provided free of charge for customers.
| Video | Input | 64 IP video ch | |
| Supported device | Hundreds of heterogeneous camera support. ONVIF protocol support | ||
| Output | 1 x DVI or 1 x HDMI or 1 x DisplayPort 1.2 | ||
| Multi-Monitors | Dual Monitor | ||
| Live Monitoring | Performance (H.264) | Max 120fps/ch. (dependent on supported cameras, available network bandwidth & environment) | |
| D1 | 1920fps | ||
| 1080p | 480fps | ||
| Resolution | 1024x768 or higher | ||
| Screen Split | 1/4/6/9/10/13/16/25/36/49/64 | ||
| Recording | Performance | Typical 300Mbps | |

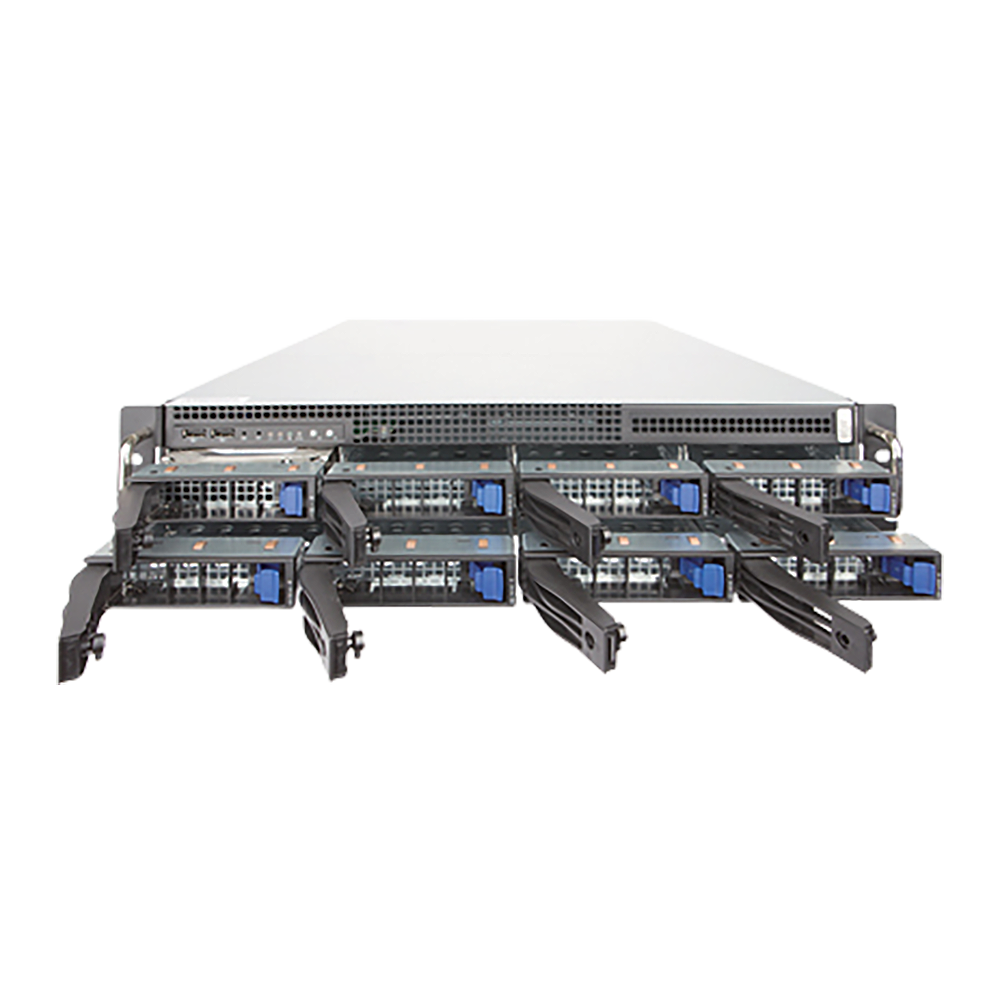

| Max HDD | 12 bay (hot swap 12 HDD bay drive) | ||
| Max Storage | 48TB (with 4TB drive) | ||
| Other | Default SSD 120GB with OS & VMSONE preinstalled. Additional HDD orders (4TB recommended) | ||
| Codec | Video | H.264, MJPEG, MPEG4, Wavelet, | |
| Audio | G.711, G.723, G.726, IP audio 64ch input. 2way audio function | ||
| Other | Patent-applied world's fastest C-Stream (Random Accessible P-frame) H.264 codec | ||
| Search | Split Screen | 1/4/6/9/10/13/16 | |
| Other | Multiple video synchro search, Selected channel time synchronization, AVI search, Event search, Smart Search etc | ||
| Backup | Media | Local HDD, Local USB, Remote Client PC | |
| Format | AVI or JPEG | ||
| System | CPU | Intel Kaby Lake Platform or latest Intel CPU platform support | |
| OS | Windows Embedded 10, 64 bit installed on SSD | ||
| NIC | 2 x Gigabit Ethernet Port | ||
| USB ports | 3 x Rear USB 3.1 Type A Port, 1 x Rear USB 3.1 Type C Port | ||
| Other ports | 1 x Serial Port, HD Audio Jack | ||
| Environment | Temperature | 50 ~ 95F (10 ~ 35℃) | |
| Humidity | 20 ~ 70% | ||
| Dimensions | inch | 16.9 x 3.64(2U) x 22.0 inch (430 x 88(2U) x 560mm) W x H x D | |
| Weight | lb | 30.86 lb(No HDD)~ 46.29lb(12 HDD)(14 ~ 21kg) | |
| Input Voltage | 100-240V / 50-60Hz / Single Power Supply | ||
| Server revision | RSe | ||
| Remote Client | OS | Windows Embedded 10, 64 bit installed on SSD | |
| Performance | Intel i7 series CPU recommended depending on performance requirements | ||
