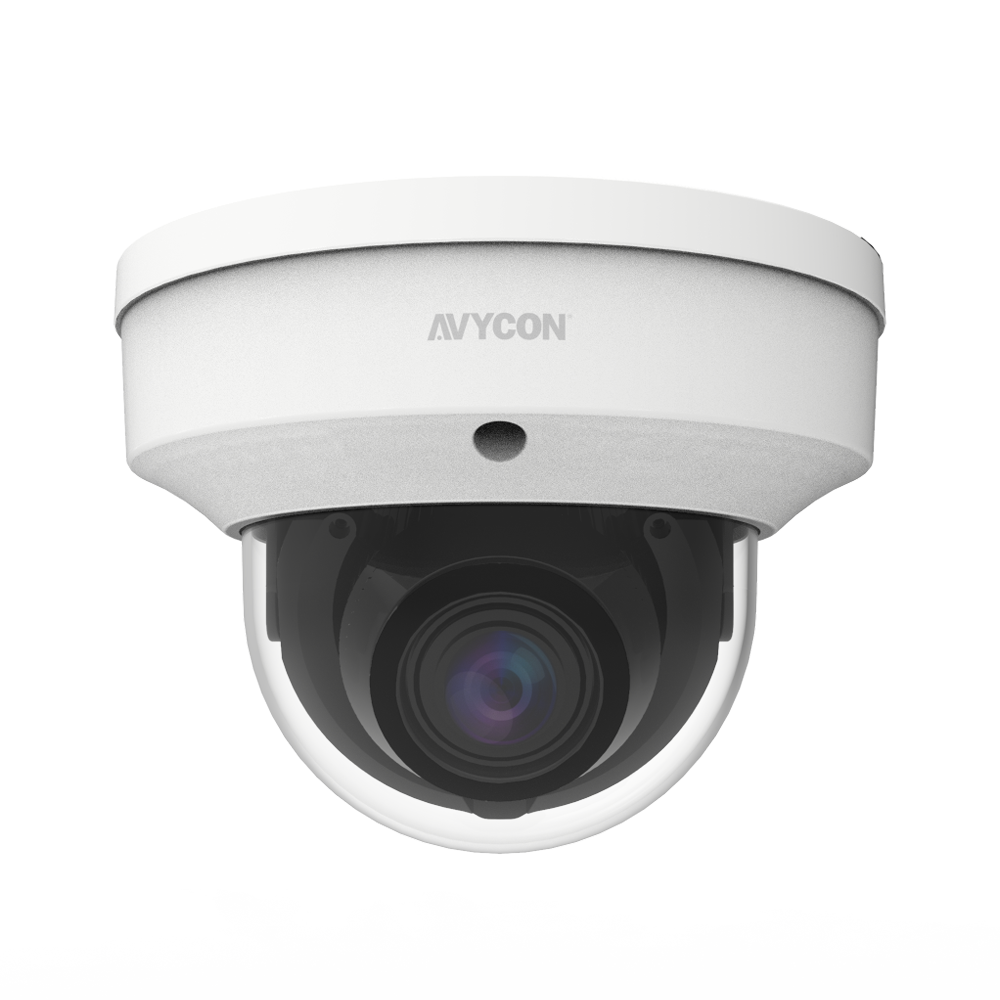

8MP HD-TVI MOTORIZED VARIFOCAL VANDAL DOME CAMERA

상품 선택옵션 0 개, 추가옵션 0 개

• 8MP (3840 X 2160)
• Motorized 2.7 - 13.5 mm Lens
• HD-TVI / CVI / AHD / CVBS (Analog)
• Easy-to-Use DIP Switch to Change Formats
• True Day / Night
• Smart IR Illumination Up to 115ft.
• Digital NR
• DWDR
• IP67 Outdoor Rating
• IK10 Vandal Proof Rating
• Dual Voltage: DC 12V (±10%, 6W Consumption) & AC24V
• NDAA Compliant

8MP HD-TVI MOTORIZED VARIFOCAL VANDAL DOME CAMERA


Our Second Generation HD-TVI Series continues providing the quality expected from the AVYCON brand. This 8MP 4K camera includes an upgraded Smart IR LED array, new DIP switch design for easily changing video formats (HD-TVI, CVI, AHD and Analog), and 3-axis lens control. With the newest generation chipset and board design, we have also increased power efficiency with a possible 20% savings in consumption. This camera also includes a motorized 2.7mm - 13.5mm Varifocal Lens with Auto-focus capabilities that can be controlled through the DVR. Also standard with this series is Digital NR, AGC, DWDR, and BLC capabilities along with IP67 outdoor rating and an IK10 vandal proof rating.


• 8MP (3840 X 2160)

• Motorized 2.7 - 13.5 mm Lens

• HD-TVI / CVI / AHD / CVBS (Analog)

• Easy-to-Use DIP Switch to Change Formats

• True Day / Night

• Smart IR Illumination Up to 115ft.

• Digital NR

• DWDR

• IP67 Outdoor Rating

• IK10 Vandal Proof Rating

• Dual Voltage: DC 12V (±10%, 6W Consumption) & AC24V

• NDAA Compliant


Features - IP67.pngFeatures - IK10.pngFeatures - CoC.pngFeatures - Smart IR.pngFeatures - Defogging.png
CAMERA
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 8MP
Image Size 3840 X 2160
Video Output 1-channel BNC Video Output
Image System PAL / NTSC
Electronic Shutter 1/15s to 1/50,000s
IR Distance Up to 115ft (35m)
Video Formats HD-TVI / AHD / CVI / CVBS (Analog)
Frame Rate HD-TVI / AHD / CVI / CVBS (Analog): 15 FPS
Min. Illumination 0.05luxF1.2 (AGC ON), 0Lux with IR ON
Lens Motorized 2.7 - 13.5mm Lens
Horizontal Field of View 115.9°(W) & -33.8°(T)
Lens Mount φ14mm
S/N Ratio 36dB
Function Control OSD, Control over Coax (UTC)
Day & Night EXT / Auto / Color / BW (Black and White)
Digital WDR Yes
Digital NR Yes (3D DNR)
Auto Gain Control (AGC) Yes
Auto White Balance (AWB) Yes
Backlight Compensation (BLC) Yes
Edge Brightness Compensation Yes
Defog No
HLC Yes
Sharpness Yes
Mirror Image Yes
Smart IR (Anti-SAT) Yes
Image Setting Yes
Defect Correction Auto / Manual
GENERAL
Angle Adjustment Any Angle
Input Voltage DC 12V (±10%) & AC24V
Power Consumption Maximum 6W
Ingress Protection IP67
Vandal Rating IK10

Working Environment

-22°~131° F (-30°~55° Celcius)
Dimensions Ø5.91" x 4.41" (Ø150.0mm x 112.0mm)
