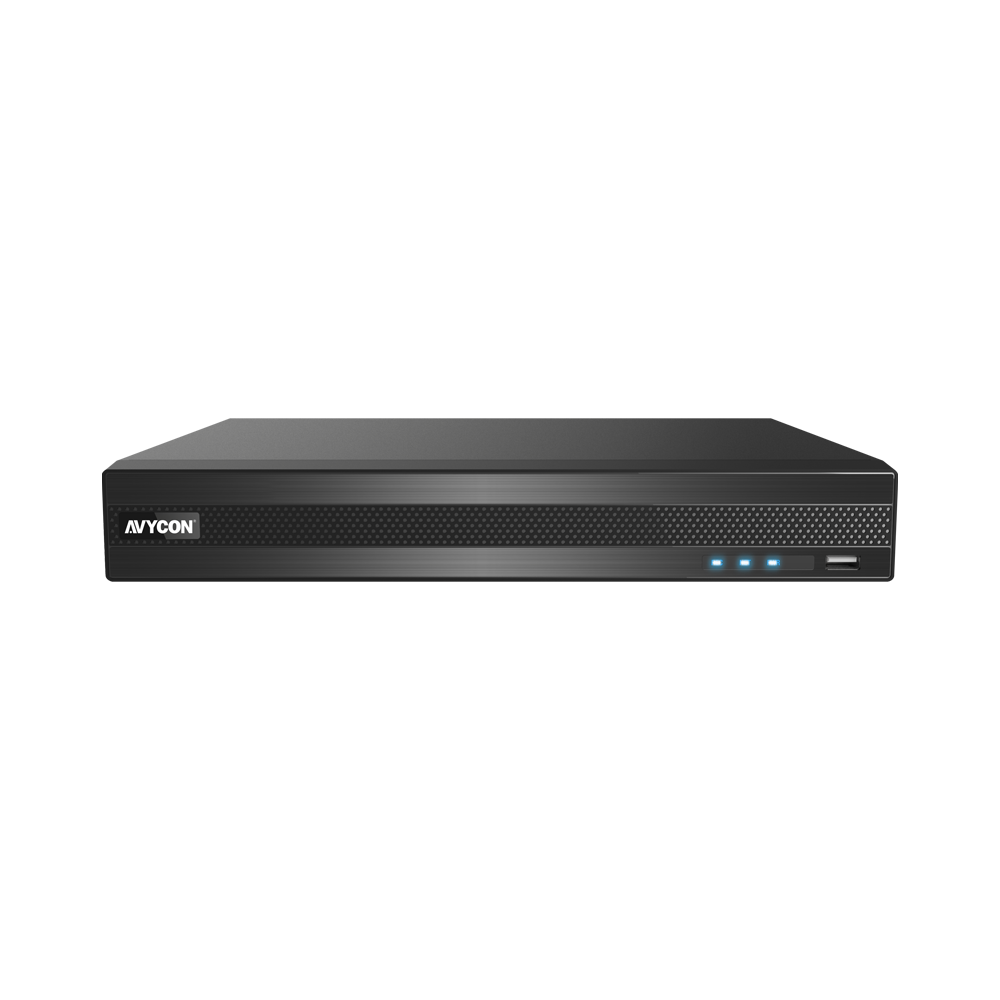

4 CH. HD ALL-IN-ONE DIGITAL VIDEO RECORDER
• 8MP / 5MP / 4MP / 1080P / 960P / 720P / WD1 HD-Analog Input
• Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
• Intuitive and user-friendly Graphics User Interface (GUI), window style operation by mouse
• Multi-mode recording: manual / timed / motion
• Playback: 4 CH simultaneously playback
• Search: time slice, time, event, tag and smart search
• Express and flexible backup via USB, network and so on
• Pentaplex: preview, record, playback, backup and remote access
• DHCP, DDNS, PPPoE network protocol
• Remote control via Web Client or CMS: preview, playback, backup, PTZ and configuration
• Authorization management, log review and device status review
• HDMI 4K output, true high resolution display
• Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
• Support NAT function and QRCode scanning by mobile phones
• AVYCON / ONVIF® IP Camera Support up to 8MP
• Full Interactive PTZ Function with OSD Menu, Preset, Scan and Tour
• All-in-One Video Management Software for NVR, DVR and IP Cameras
• Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
| VIDEO | |
| Video Input (Analog + IP) | Total: 6 CH Analog: 4 CH IP: 2 CH (6 CH Max. IPC Supported When Converting Analog Channels) |
| Output |
HDMI × 1: 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1: CVBS (Used as Main or Spot Output) |
| HD-Analog Input Resolution | TVI / AHD: 8MP, 5MP, 4MP, 1080P, 720P, WD1 Real Time CVI: 1080P, 720P Real Time |
| IP Input Resolution | 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P |
| Video Compression |
Standard H.265 |
| AUDIO | |
| Network Input | 4 Channel IPC Audio Input |
| Local Output |
RCA x 1 |
| 2-Way Audio | 1 Channel Audio Input |
| RECORDING | |
| Resolution | 8MP / 5MP / 4MP / 1080P / 960P / 720P |
| Frame Rate Channels | 4K@6fps / 7fps (PAL / NTSC) (only CH1 supports) 4K Lite@12fps /15fps (PAL / NTSC) 5MP@12fps (PAL / NTSC) 5MP Lite@20fps (PAL / NTSC) 4MP / 3MP@12fps / 15fps (PAL / NTSC) 4MP Lite / 1080P / 720P / WD1 / D1@25fps / 30fps (PAL / NTSC) |
| Frame Rate |
25fps (PAL) / 30fps (NTSC) |
| Bit Rate | 32Kbps ~ 4Mbps |
| Mode | Manual, Timer, Motion, Sensor |
| PLAYBACK | |
| Smart Search |
Highlight Colors to Display Camera Record in a certain period of time, Different Colors refer to Different Record Events |
| Search | Time slice / Time / Event / Tag Search |
| Function | Play, Pause, Fast Forward, Fast Rewind, Digital Zoom, etc. |
| Simultaneous Playback | Max 16 Channels |
| ALARM | |
| Alarm Input |
4 Channels Local Alarm Input; IPC Alarm Input Supported |
| Alarm Output |
1 Channel |
| Alarm Trigger |
Record, Snap, Preset, E-mail, etc. |
| STORAGE | |
| HDD Interface | SATA x 1, Max 18T per HDD; e-SATA x 1 |
| BACKUP | |
| Network Backup |
Yes |
| Local Backup | USB Flash Drive, USB Mobile HDD |
| NETWORK | |
| Interface |
RJ45 10 / 100 Mbps x 1 |
| Protocol | TCP/ IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP |
| EXTERNAL INTERFACE | |
| RS-485 | Yes, Connect to PTZ or Keyboard |
| Remote Controller |
Optional |
| USB | USB 2.0 x 1 (Front Panel), USB 2.0 x 1 (Rear Panel) |
| GENERAL | |
| Power Supply |
DC 12V |
| Power Consumption | ≤10W (Without HDD) |
| Working Environment | 14°~122°F (-10°~50° Celcius) |
| Working Humidity | 10% ~ 90% (Non-Condensing) |
| Dimensions |
11.61” x 1.65” x 9.69” (295mm x 42mm x 246mm) |
