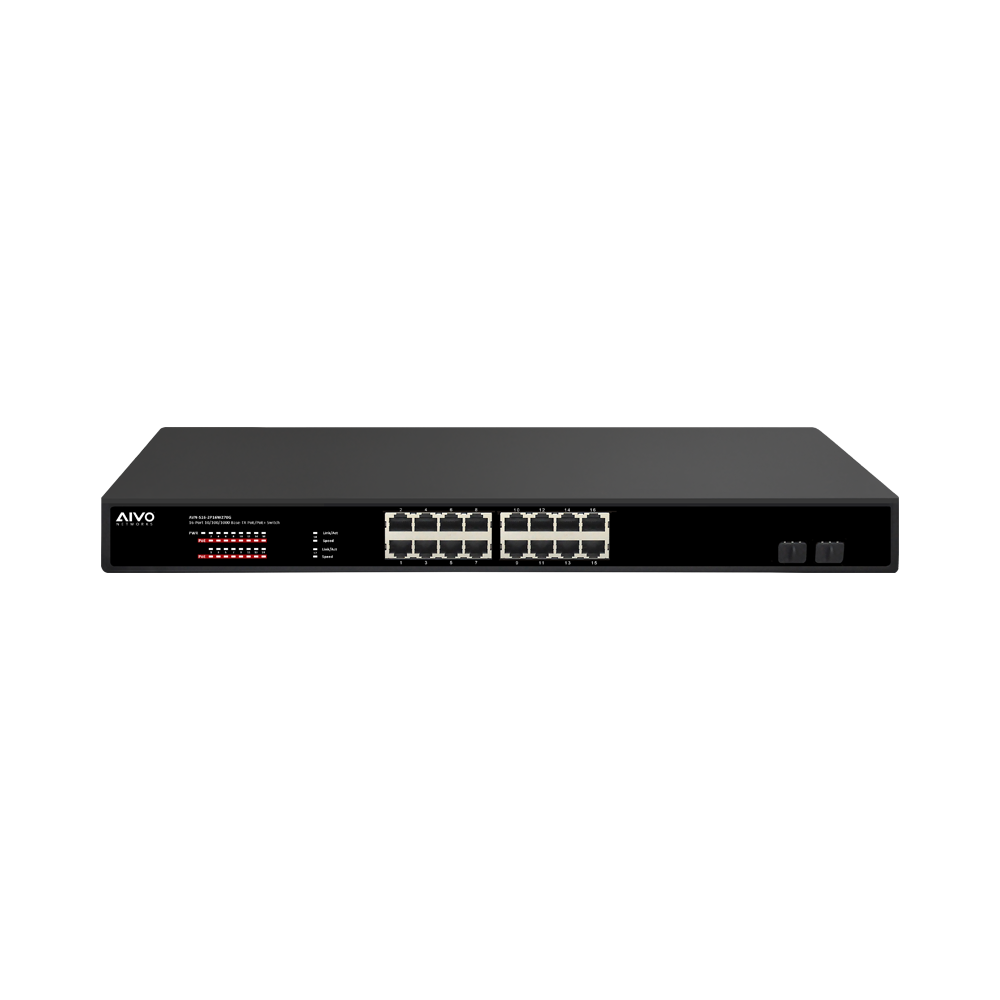

16 PORT 270W GIGABIT POE SWITCH WITH 2 1000 MBPS SFP
The AVN-S16-2P16W270G-SP is 16 port Gigabit PoE/PoE+ Switch with 2 x 1000Mbps SFP ports. The AVN-S16-2P16W270G-SP provides 16 PoE/PoE+ ports, which can automatically detect and provide power for any connected 802.3at/af Powered Device (PD), such as VOIP Phones, APs, IP Phones and IP Cameras. With its built-in surge protection feature, it is suitable for larger commercial applications. The AVN-S16-2P16W270G-SP comes with industrial standard 19’’ 1U rack-mountable chassis. All PoE ports support the IEEE802.3af/IEEE802.3at standard, with a maximum output of 30W per each port and a total PoE budget of 243W.
• IEEE802.3af / IEE802.3at Compliant
• 16 x 10/100/1000Base-TX Ports and 2 x 1000Mbps SFP Ports
• 16 x PoE / PoE+ ports, with each port supporting a 30W max. power output
• Total PoE budget of 243W
• High backplane bandwidth of 36Gbps
• Up to 8K MAC address table size
• IEEE802.3x Flow control
• Industrial standard 19’’ 1U rack-mountable housing
• Pin Assignment: V+ (RJ45 Pins 1, 2), V- (RJ45 Pins 3, 6)
• EMI standards complies with FCC, CE class B
• Built in Surge protector, for each individual port
| GENERAL | |
| Fixed Port | 16 x 10/100/1000Base-TX ports, |
| LED Indicators | 2 1000 Mbps SFP ports |
| Input Voltage | PWR, PoE, Link/Act LED |
| Network Standard | 100V ~ 240V AC, 50/60Hz IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control |
| Network Media | IEEE 802.3az 10BASE-TX: UTP Category 5/5e Cable (≤250m) 100BASE-TX: UTP Category 5/5e Cable (≤150m) 1000BASE-TX: UTP Category 5/5e Cable (≤150m) Uplink Fiber Port: Single Fiber 20km / 12miles, Double Fiber 20km / 12miles |
| Total Wattage | 243W |
| Operating Temperature | 32°F ~ 104°F (0°C ~ 40°C) |
| Storage Temperature | 14°F ~ 158°F (-10°C ~ 70°C) |
| Relative Humidity | 20%~85% (Non-Condensing) |
| Thermal Method | Built-In Noiseless Fan |
| Switching Capacity | 36G |
| MAC Address Table | 8K |
| Dimensions | 440mm x 200mm x 44mm (W x D x H) |
| Weight | <5Kg (11lb) |
| Package | AVN-S16-2P16W270G-SP PoE switch User Manual Power Cable |
| PoE Port | 16 10/100/1000Base-TX ports |
| PoE Standard | IEEE802.3af, IEEE802.3at, per port 15.4W, max. 30W |
| PIN Assignment | V+ (RJ45 Pin1, 2), V- (RJ45 Pin 3, 6) |
