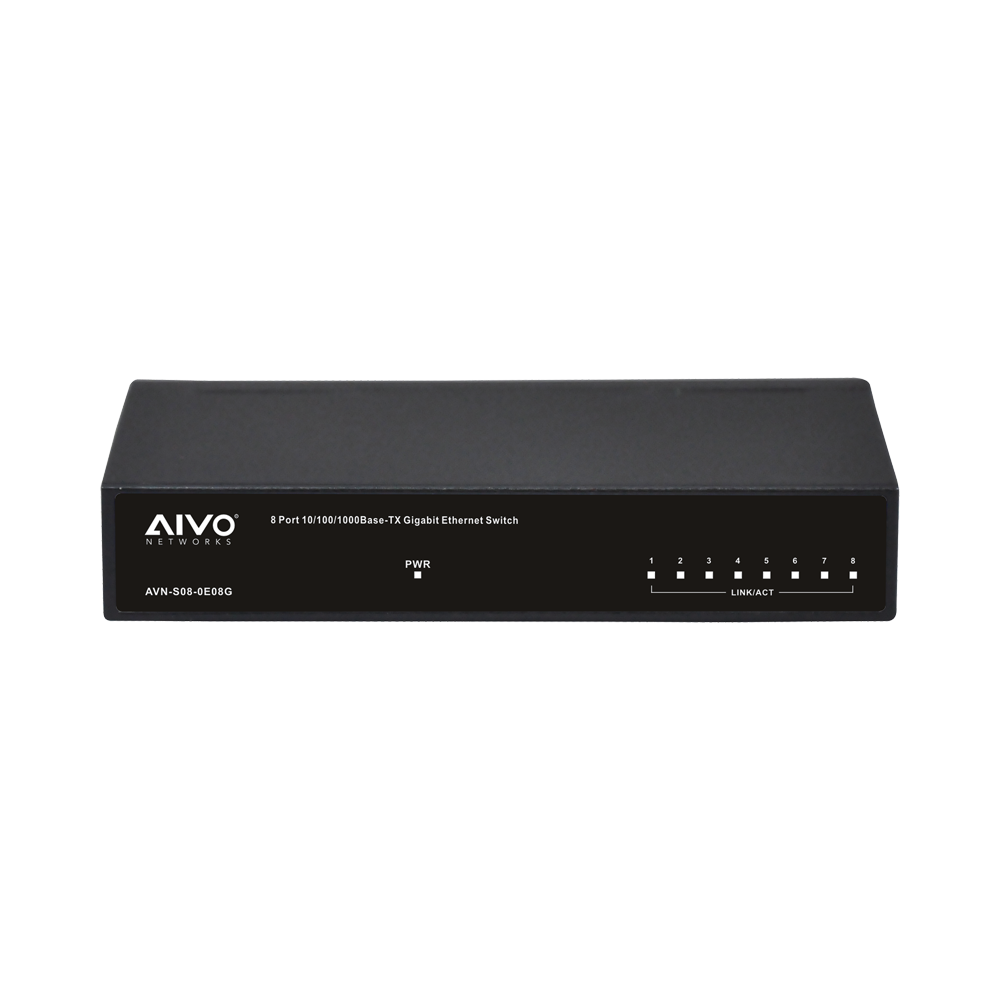

8 PORTS GIGABIT NETWORK SWITCH
This product is a Gigabit Ethernet switch. The machine comes with 8x10/100/1000Mbps RJ45 ports, which can satisfy the full speed forwarding of ports. The machine adopts desktop small cabinet, suitable for business office and family users.
• IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z
• Provides 8 10/100/1000 Base-TX ports
• High back-plane bandwidth of 16Gbps
• 4K MAC address table
• IEEE802.3x Flow control
• Surge protection for power and data ports
• Plug and Play design - no configuration required
• EMI standards complies with FCC, CE class B
| GENERAL | |
| Fixed Port | 8 - 10 / 100 Base -TX ports |
| LED Indicators | PWR, Speed, Link / Act VLAN LED |
| Input Voltage | 100V ~ 240V AC, 50 / 60Hz |
| Network Media | 10BASE-TX: UTP category 5, 5e cable (≤250m) 100BASE-TX: UTP category 5, 5e cable (≤150m) 1000BASE-TX: UTP category 5, 5e cable (≤150m) |
| Forwarding Rate | 10BASE-T: 14880pps / port 100BASE-TX: 148800pps / port 1000BASE-TX: 148800pps / port |
| Power Consumption | 3W |
| Power Supply | 150W (250W optional) |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -10°C ~ 70°C |
| Relative Humidity | 20% ~ 85% (Non-Condensing) |
| Thermal Method | Fanless |
| Switching Capacity | 16G |
| MAC Address | 4K |
| Traffic Control | IEEE 802.3x Full-Duplex flow control |
| Rate Limit | Unit: 64kbps |
| Convergence | 4 output queues on each port. Scheduling Method: Strict Priority, Weighted Round Robin. |
| QoS | Support port-based classification |
| WEB | Support WEB management system |
| Configuration File Download/ Upload | Support Download / Upload configuration File via WEB |
| Upgrade Firmware | Support Upgrade Firmware via WEB |
| Unit Size | 137mm x 75mm x 25mm |
| Weight | 400g |
| Packaged Contents | AVN-S08-0E08G - Network Switch User Manual Power Cord*1 Rack Mount Kit*2 |
