4.0” HD-TVI WRISTBAND NETWORK TESTER

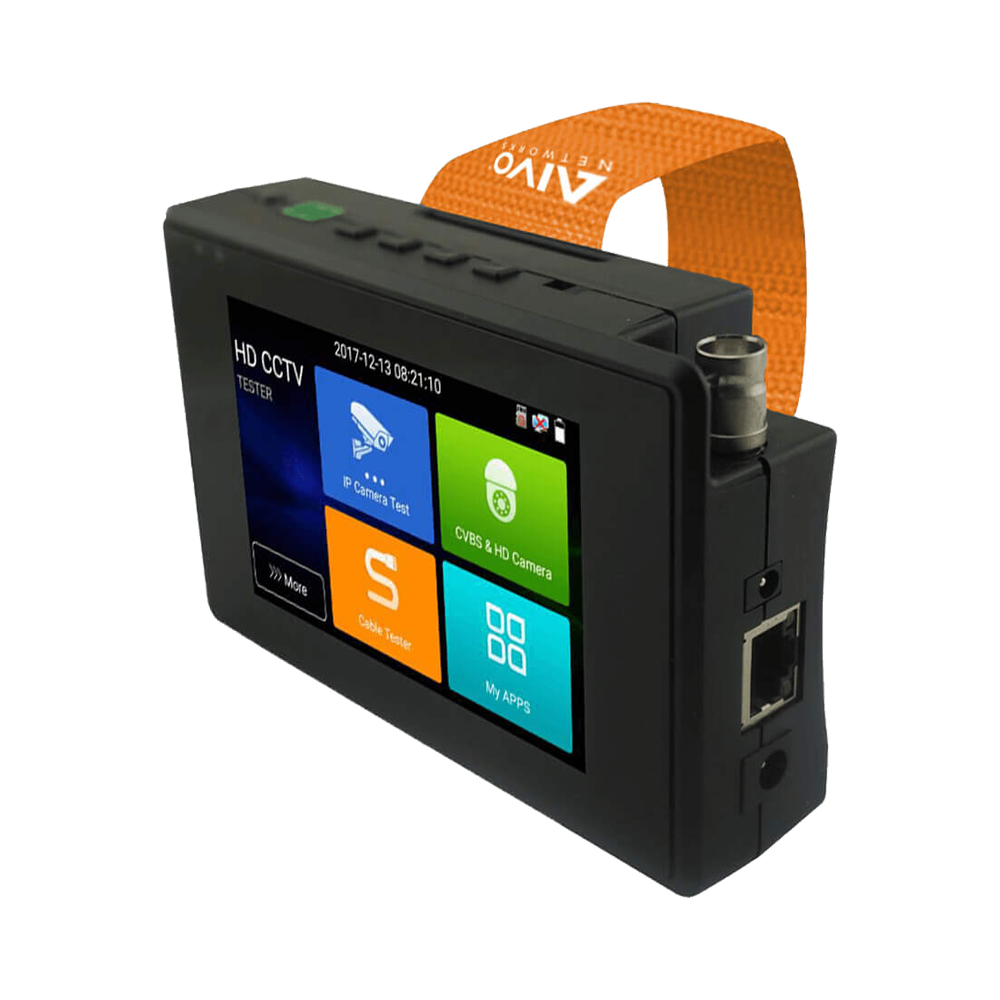

The AVYCON AIVO-40T4KP is a 4.0” HD-TVI Network Wristband Tester. This wristband tester is TVI and Analog compatible. It supports 4K and has a built in touch screen and Wi-fi capability. The tester is oriented in a compact wristband style.
• H.265, H.264, up to 4K video display via IPC Mainstream
• 4K Video files and MKV / MP4 formats supported for playback
• 8MP (4K) TVI test, supports up to 3840 x 2160P @ 15FPS
• 5MP AHD test, 2560 x 1944P @ 12.5FPS/20FPS
• 4MP CVI test, 2560 x 1440 @ 25/30FPS
• Up to 4 Channels Rapid Onvif scan, Auto login, View live video, and create camera test reports
• ONVIF PTZ Contol, Video Record and Playback, Screen Snapshot, 4x Digital Zoom, Move the image display and Video Output
• Testerplay™ - Display camera stream on tester and PC/Mobile Devices simultaneously
• 48V PoE / DC 12V Ouput - Input and Voltage Measurement
• Ability to install third-party Android apps
• Drop-down menu and customizable shortcut menu
• CVBS loop test, send and receive color bar signal for use in coaxial cable testing
• Quick charging Lithium Ion Polymer Battery with up to 8 hour battery life
• Wrist strap for portability and ease of use
| GENERAL | |
| Display | New 4" touchscreen - 800 x 480 resolution |
| Network Port | 10/100M auto adjust, RJ45 |
| Wi-Fi | Built-in Wi-Fi with speeds of up to 150Mbps allowing connection to local wireless network for testing of IP cameras |
| H.265 Main Stream Testing | Support for hardware decoding of 4K/H.265/H.264 mainstream video streams from compatible IP cameras |
| IP Discovery | Auto-Scan whole network segment for IP cameras |
| Rapid ONVIF | Quickly search for ONVIF compatible cameras, auto log-in and display video stream from cameras, Hikvision camera activation |
| Hikvision Test Tool | Activate Hikvision cameras, display stream from the camera, modify IP address, modify username and password, modify camera parameters, etc. |
| Dahua Test Tool | Dahua camera test, modify IP addresses, modify username and password, parameters, etc. |
| Supported IP Camera Types | ONVIF, ONVIF PTZ, Dahua IP Cameras, Hikvision IP Cameras, Samsung IP Cameras, Tiandy IP Cameras, Kodak IP Cameras, Honeywell IP Cameras, RTSP |
| HD-TVI Capabilities | 1 channel TVI input - BNC interface, resolution support of up to 8MP, 3840 x 2160p @ 15fps, 2560 x 1440p @ 25/30fps, 2560 x 1944p @ 12.5/20fps, 2048x1536p 18/25/30fps, 1080p 25/30fps, 720p @ 25/30/50/60fps, UTC control for OSD |
| Analog / CVBS Capabilities | 1 channel BNC input & 1 channel BNC output NTSC/PAL (auto detection) |
| Image Zoom | Capture current images and record live video as JPG files. |
| Snapshot/Video | Supports analog and IP camera image zooming & movement |
| Record & Playback | Included media player will be able to view photos and playback video. |
| DC Power Output | Output DC12V/3A power to camera |
| PoE Power Output | 48V PoE Power output, max power 24W |
| Customization Options | Self-defined icons, desktop and application Interface background, modify interface sliding effect |
| Drop-down Menu | Includes PoE power switch ,IP setting, WLAN switch, etc. Screen lock, password lock screen or pattern lock |
| Audio Test | 1 channel audio signal input to connect headphones |
| PTZ Control | Support RS485 control, Baud 600 - 115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc |
| Color Bar Generator | Output one channel PAL / NTSC color bar video signal for testing monitor or video cable (Red, Green, Blue, White and Black color ) |
| Data Monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal |
| Network Test | IP address scan, link scan, and ping test. Quickly search the for IP camera’s address on your network |
| PoE /PSE Voltage Test | Measures PoE switch voltage and displays pin configuration |
| Optical Power Meter (Optional) | Calibrated wavelength (nm) : 850/1300/1310/1490/1550/1625nm Power range (dBm) : -70 ~ 10dBm |
| Visual Fault Locator (Optional) | Test fiber’s bending and breakage (SM and MM fiber) |
| Power | DC 12V 1A, Built-in 7.4V lithium polymer battery, 2400mAh, Lithium Ion Polymer Battery with up to 8 Hour Battery Life |
| Parameter | Capacitive touch screen, OSD menu. Supported Language: English, Korean, Chinese, Russian, Italian, Polish, Spanish, French, Japanese, etc. |
| General | Auto off: 1-30 min / Working Temp: -10°C ~ 40°C (14°F ~ 104°F ) Working Humidity: 30% - 90% / Dimensions / Weight: 126mm x 83mm x 33mm / 320g |
