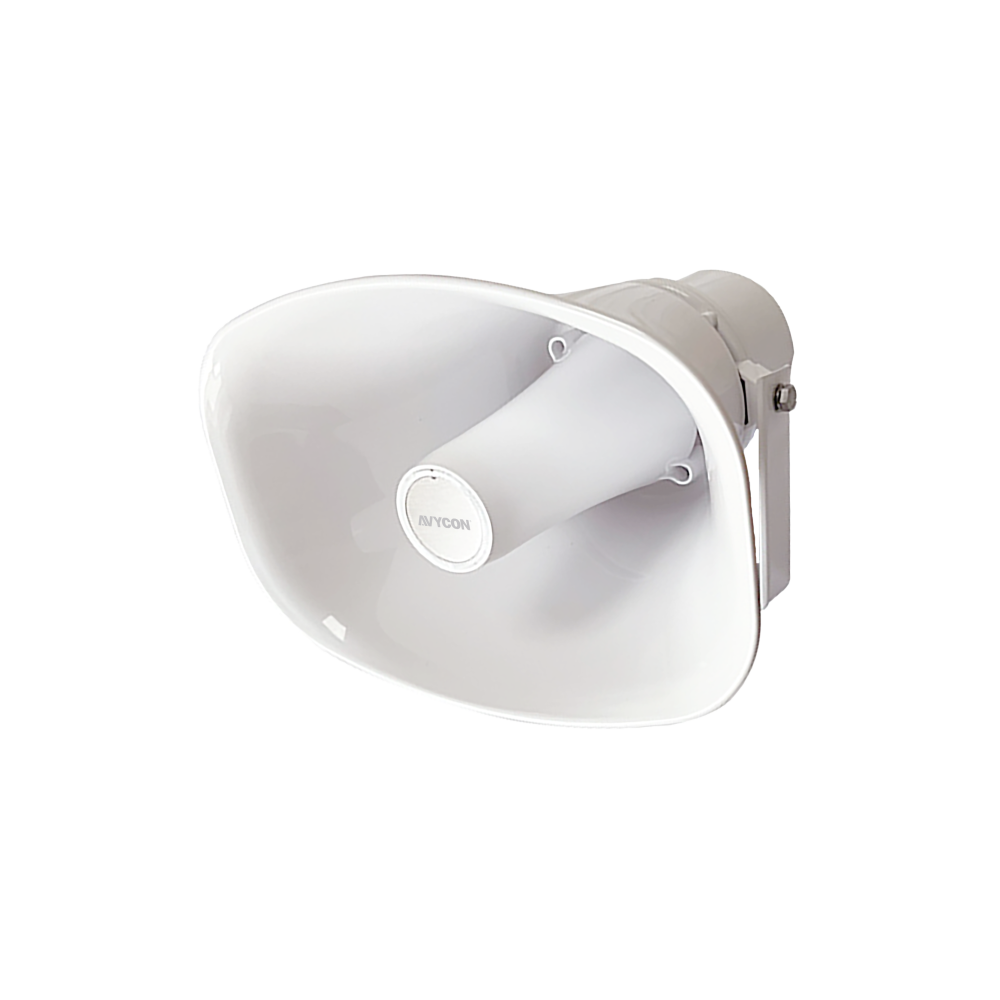

30W SMART ALL-IN-ONE IP HORN SPEAKER WITH A BUILT-IN MICROPHONE
· Two-Way Intercom Communication
· 48K OPUS, AEC, AGC, ANR
· Compatible with VolP, SIP devices (IPPBX, IP Phone) via SIP
· Compatible with IP Camera VMS via ONVIF
· HTTP Control, Alarm in, Schedule
· 30W Amplifier, PoE Power Supply
· Built-in MIC, Audio in, TF Card (Optional)
| AUDIO | |
| Codec | OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz |
| Built-in Microphone | Yes |
| SPEAKER | |
| Max SPL | 113dB |
| Frequency Response | 300Hz~8KHz |
| Frequency Range | 500-2KHZ +-10dB 400-12KHZ +-20dB |
| Harmonic Distortion | 0.1@1kHz |
| Signal to Noise Ratio | 91dB |
| NETWORK | |
| Security | Password protection, IP address filtering, Digest authentication, User access log, Firewall |
| Network Protocal | SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
| Network Interface | 10/100 Base-TX, RJ45 |
| VolP | Support for SIP protocol for intergration with VoIP systems, intergrated with SIP/PBX. 2 SIP Accounts, SIP Direct IP Call, RTP Multicast Codec: OPUS, MP3, G.722, PCMU, PCMA |
| AMPLIFIER | |
| Amplifier Description | Built-in 15W Amplifier |
| GENERAL | |
| Operating Temperature | -22°F ~ +140°F (-30°C ~ +60°C) |
| Operating Humility | 5%-85% |
| Material | ABS (IP66 water-proof) |
| Rate Power | 15W |
| Power Supply | PoE or DC12V |
| Connector | Alarm in, Audio in, DC Power, PoE |
| Installation | Wall Mounted |
| Dimensions | 11.23 x 8.08 x 11.17 in (285.40 x 205.46 x 283.96 mm) |
| Net Weight | 4.4 lbs (2 KG) |
| Languages | English |
| Package Includes | IP Horn Speaker User Manual |
