AVC-PRHN41FT 요약정보 및 구매

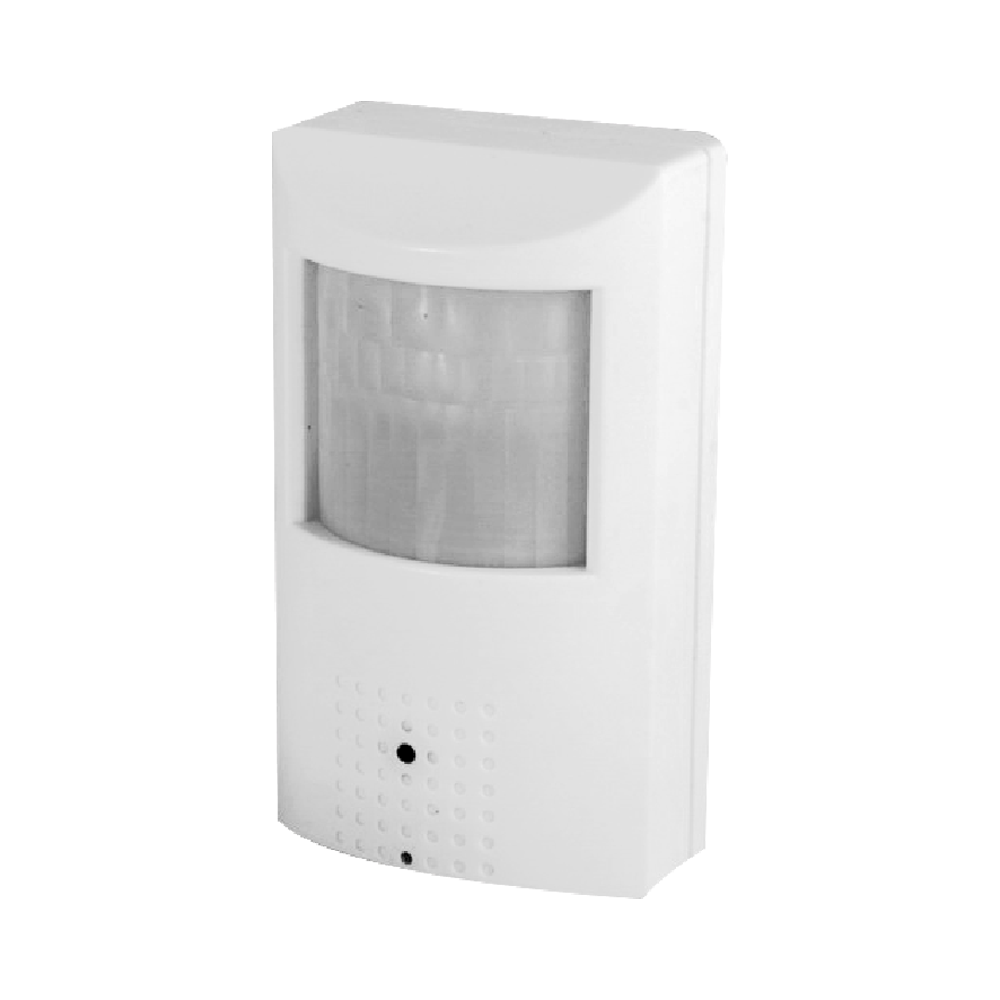

4MP IP PINHOLE LENS PIR TYPE CAMERA

상품 선택옵션 0 개, 추가옵션 0 개

· H.264 Compression
· 1/2.8” 4 Megapixel CMOS Sensor
· Effective Pixels: 2560 x 1440
· 3.7mm Fixed Lens
· 4MP @ 30fps
· 0.001 Lux @ F1.2, AGC ON, 0 Lux with IR
· DWDR
· 12V DC / PoE
Specifications Features Technology Documents Software Accessories

4MP H.265 PINHOLE LENS NETWORK CAMERA


The AVYCON AVC-PRHN41FT camera is a 4MP IP Pinhole Lens PIR Type Camera. This camera includes a 3.7mm Pinhole Lens.


· H.264 Compression

· 1/2.8” 2 Megapixel CMOS Sensor

· Effective Pixels: 2560x1440

· 3.7mm Fixed Lens

· 4MP @ 30fps

· 0.001 Lux @ F1.2, AGC ON, 0 Lux with IR

· DWDR

· 12V DC / PoE

CAMERA
Image Sensor 1/2.8” CMOS Sensor
Image Size 2560x1440
Electronic Shutter 1/25s ~ 1/100000s
Minimum Illumination Color: 0.001lux@F1.2, AGC ON, B/W: 0lux with IR
IR On/Off Control No
Focal Length 3.7mm Fixed Lens
Angle of View No
Angle Adjustment No
IR Distance No
Wide Dynamic Range DWDR
S/N Ratio N/A
Video Compression H.264 / MJPEG
Video Resolution 2560x1440, 2560x1920, 1920x1080, 704x576, 640x360, 640x480, 352x288
Video Frame Rate

60Hz: 4MP/2K/3MP/1080P/720P (1~30fps)
Video Bitrate 32 Kbps ~ 2048 Kbps
Day / Night ICR
Video Encode VBR / CBR
BLC Mode N/A
HLC N/A
White Balance
 N/A
ROI 3 ROI
Gain Control N/A
Digital Noise Reduction 3D DNR
Defog N/A
Quality Five levels under VBR; Freely adjustable under CBR
Audio Compression No
Audio In No
Audio Out No
IPC Alarm Motion Alarm
Alarm In No
Alarm Out

No
AI Perimeter Protection No
Ethernet RJ45 x 1
Network Protocol TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
Storage Network remote storage
Storage Card No
Web Viewer IE browsing
General Function Watermark, IP Address Filtering, Access Policy, RTSP Authentication, User Authentication
Network Max. Users Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Mobile iPhone, Android
Video Output No
RS485 No
Power Supply DC 12V / PoE
Power Consumption 200mA
Operating Temperature -13°F ~ 131°F (-25°C ~ 55°C), 10% ~ 90% humidity
Ingress Protection Indoor
Dimensions 4.7” x 2.7” (Φ120 x 69mm)
Weight 0.26Lbs (120g)

4MP IP PINHOLE LENS PIR TYPE CAMERA
