8MP H.265 DUAL LENS PANORAMIC TURRET NETWORK CAMERA
• 8MP (5120×1440) H.265+, H.265, H.264+, H.264, MJPEG
• Max. resolution: 5120×1440

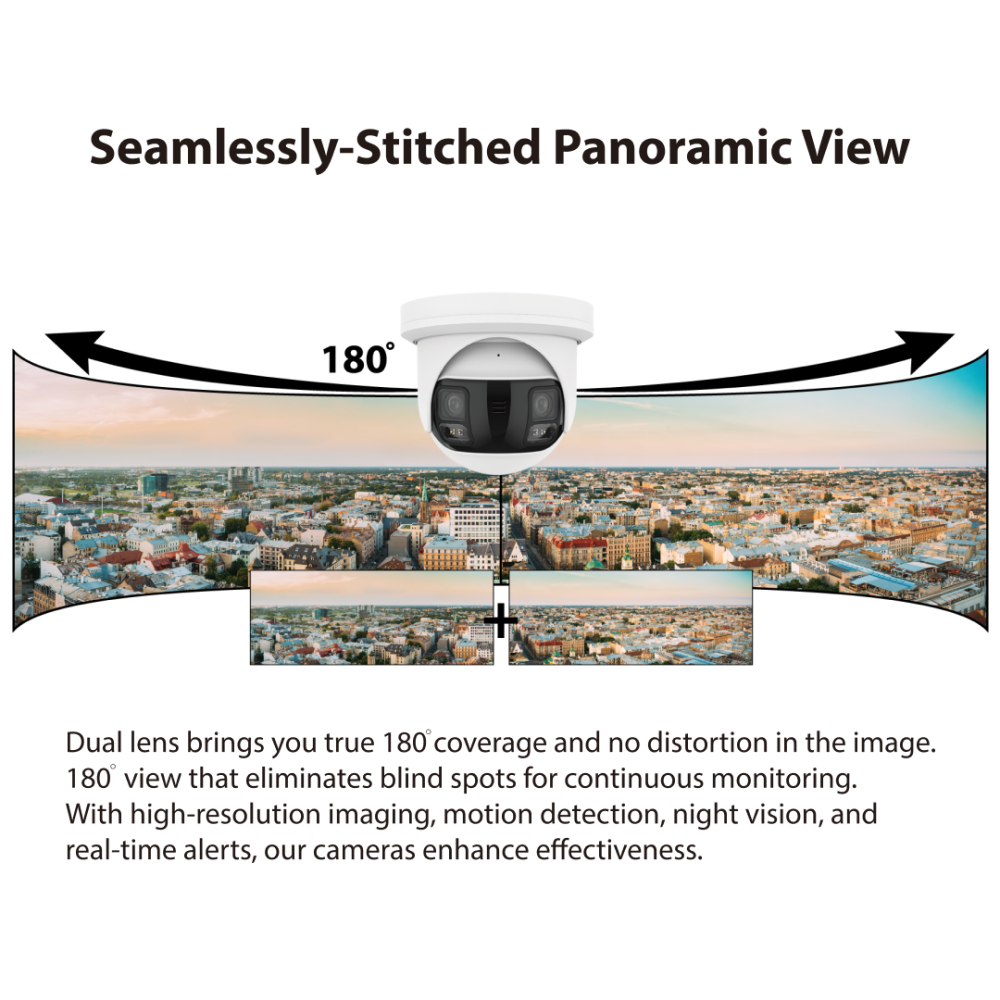

• Dual Lens Stitched Panoramic View (2 x 2.8mm Fixed Lens)
• Full Color / Active Deterrence Camera
• 3D DNR, WDR, HLC, BLC, ROI encoding
• Intelligent Analytics

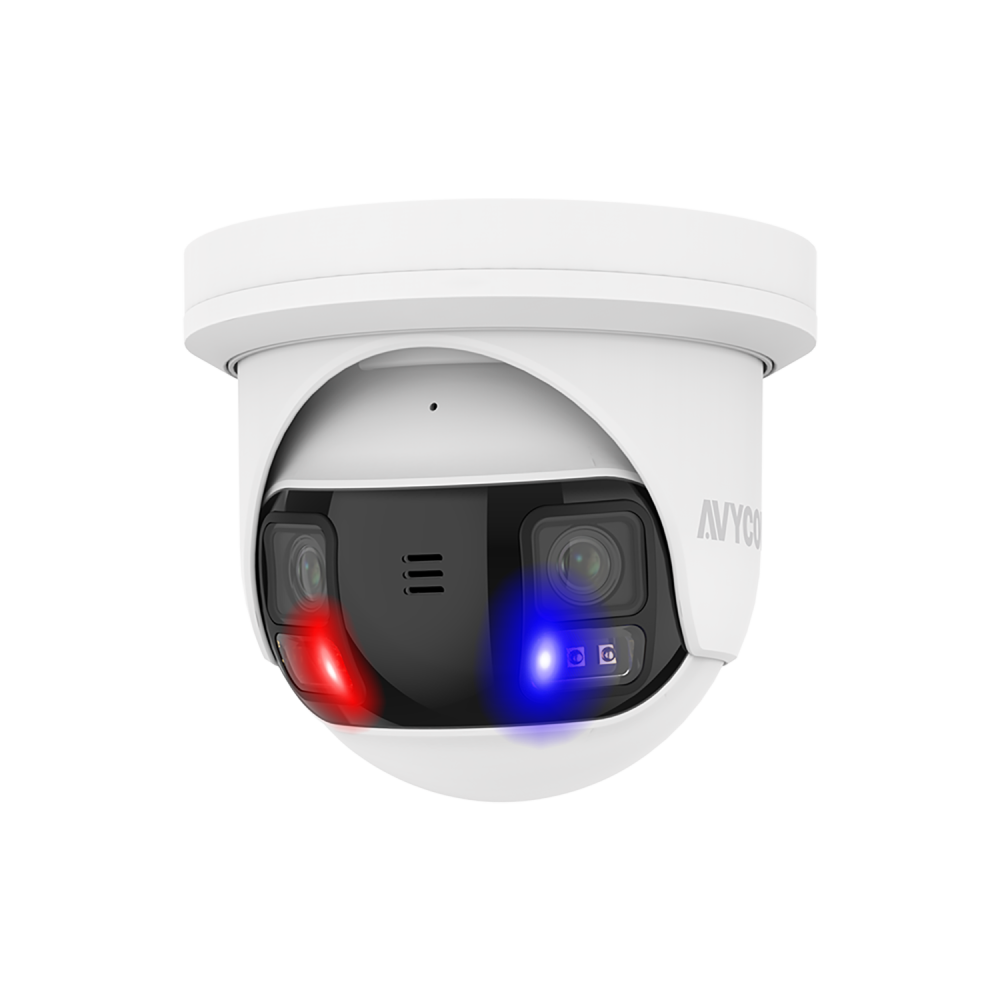

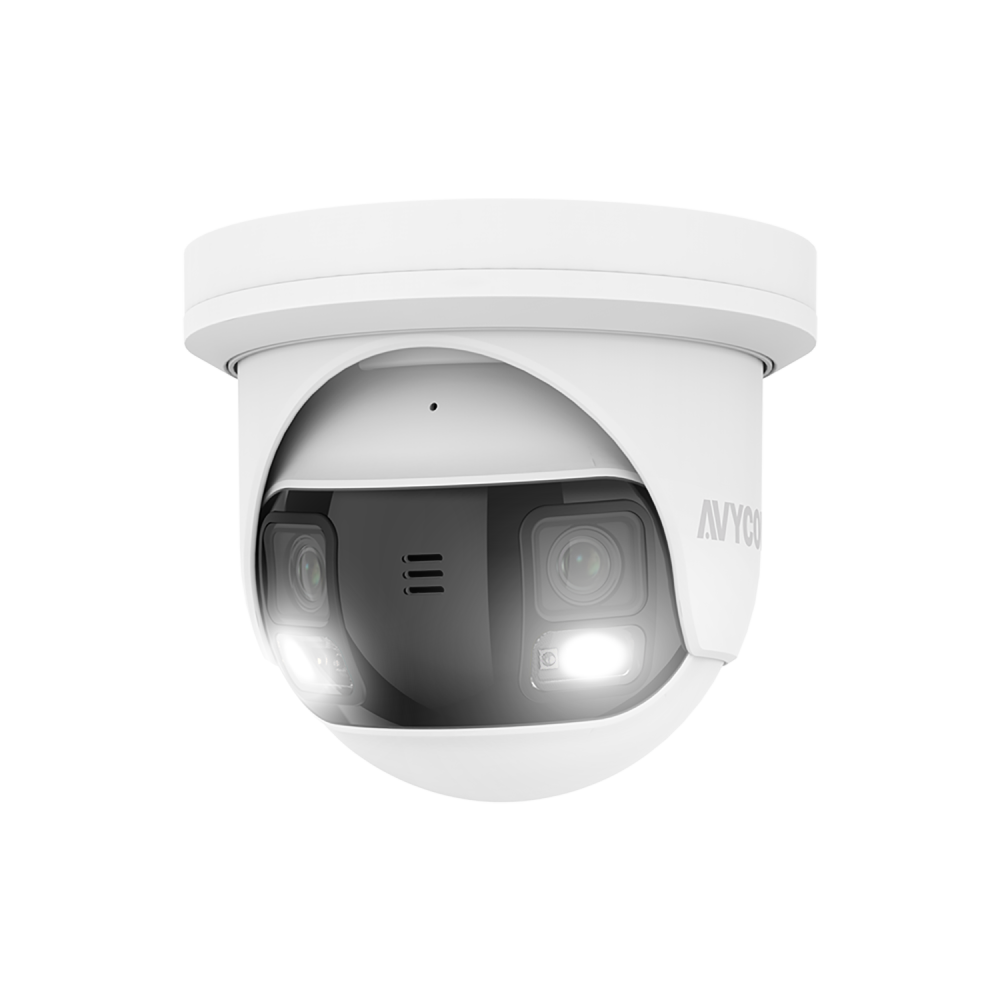

• White Light LED / Strobe (Blue & Red) Light
• Built-in MIC / Speaker
• Built-in micro SD card slot, up to 256GB
• IP67 ingress protection
• DC12V/PoE power supply
• Support remote monitoring by AVYCON ONE (Mobile APP) and AVYCON CMSONE (CMS)
| VIDEO | |
| Image Sensor | 1/2.7" Progressive Scan CMOS *2 |
| Max. Resolution | 5120*1440 |
| Min. Illumination | Color: 0.001 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/5 s to 1/20000 s |
| Slow Shutter | Yes |
| Day & Night | IR cut filter |
| Zoom | N/A |
| LENS | |
| Focal Length | 2.8 mm Fixed |
| FOV | Horizontal field of view: 180° |
| Aperture | F1.0 |
| ILLUMINATOR | |
| Supplement Light Range | IR Distance: Up to 98ft /Warm light: up to 49ft |
| Supplement Light Type | IR & Warm light |
| VIDEO | |
| *Main Stream | 60/50Hz@20fps;5120x1440; 4608x1296;4096x1152;3840x1080;3072x864 |
| Sub-Stream | 60/50Hz@20fps;2048x576; 1536x432;1024x288 |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 |
| Sub-stream: H.265+/H.265/H.264+/H.264/MJPEG | |
| Video Bit Rate | 8 kbps to 16384kbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Region Of Interest (ROI) | N/A |
| Audio | N/A |
| Audio Compression | G.711a/G.711u |
| NETWORK | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE, |
| API | Onvif ( Profile S, Profile G, Profile T),Http API |
| Simultaneous | Live View Up to 15 channels |
| User/Host | 7 User |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter,control timeout settings |
| Client | VMS |
| Web Browser | IE11, Chrome 57+, Firefox 52+, Safari 11+ |
| IMAGE | |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Wide Dynamic Range (WDR) | DWDR |
| Image Settings | Saturation, brightness, contrast, sharpness, Hue and white balance adjustable by client software or web browser |
| Privacy | 4 privacy masks |
| INTERFACE | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB |
| Alarm | Built-in red & bule flashing lights |
| Audio | 1 Built-in MIC, Built-in Speaker |
| Reset Button | Supported |
| EVENT | |
| Basic Event | Motion detection |
| Deep Learning Function | Face Recogniton，Pedestrian&Vehicle Detection，Line Crossing， Object Detection，CrossCounting， Heat Map, Crowd Density , |
| Queue Length, License Plate Recognition, Intrusion,Region Entrance, Region Exiting | |
| GENERAL | |
| Power | DC 12V/POE, max. TBD |
| Protection | IP67 |
| Operating Condition | -22 °F to 149 °F(-30 °C to 60 °C ). Humidity 90% or less (non-condensing) |
| Material | Metal |
| Dimension | Ø 4.3" × 5"(Ø 108 mm × 127 mm ) |
| *Highest main stream resolution (5120x1440) is not supported on the following PoE NVR models: AVR-NSV04P4, AVR-NSV08P8, AVR-NSV16P16 Please contact our sales department for the most updated compatible model NVR's that supports highest main stream resolution (5120x1440). |
|
